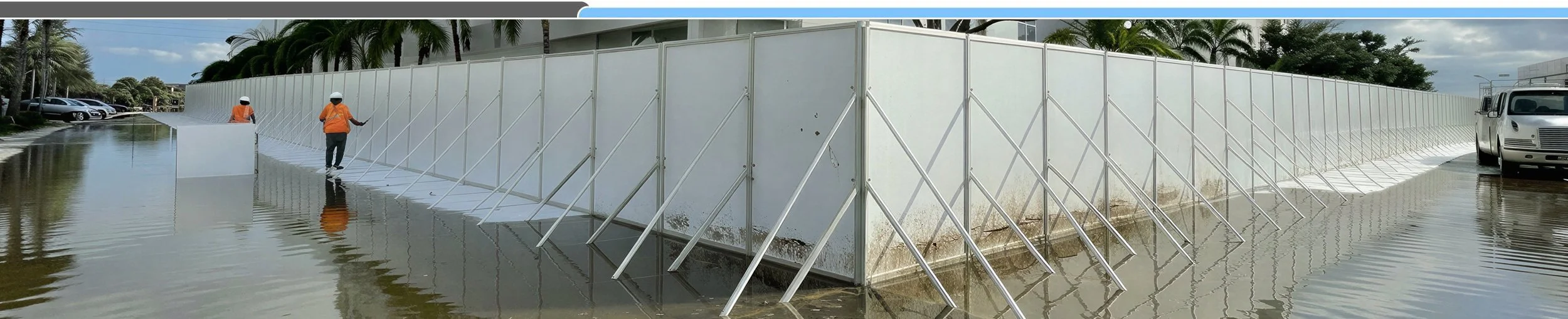

BlueFIN™ Modular Flood Wall System
The BlueFIN™ composite flood wall is a modular flood panel system that interconnects to provide durable flood mitigation. Connected BlueFIN flood panels can be used to create a perimeter flood barrier to protect properties, utility stations and grids, important rooms and assets, a cofferdam to divert and redirect water, and a fully flexible flood barrier to hold back stormwater.
BlueFIN’s unique patent-pending design incorporates a multi-layer fiberglass reinforced honeycomb panel for strength, extruded aluminum framing for extra rigidity, and an innovative latch connection system that allows for rapid deployment with minimal labor. Kicker leg supports provide additional resistance against hydrostatic and hydrodynamic pressures.
BlueFIN™ flood wall panels are designed to be transported flat, installed quickly, and store compactly; ready to use as needed.
BlueFIN™ Flood Walls are Proudly Made in the USA
Meets FEMA requirements
Flood Panels Easily Connect

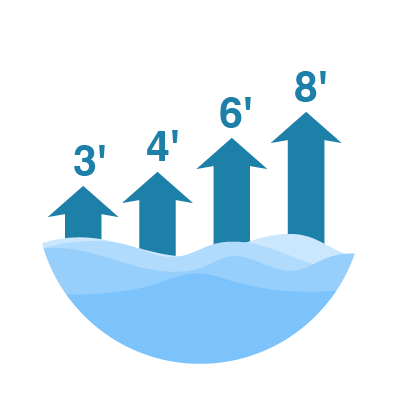

Flood wall heights up to 8ft
Durable Flood Walls for Perimeter Protection, Opening Protection and Water Diversion
When you need a durable and modular flood wall, Garrison’s BlueFIN™ composite flood wall system is the right choice for the protection of critical properties, areas and assets within government, construction, commercial, infrastructure, and residential properties and buildings.
Use BlueFIN for a variety of protection requirements:

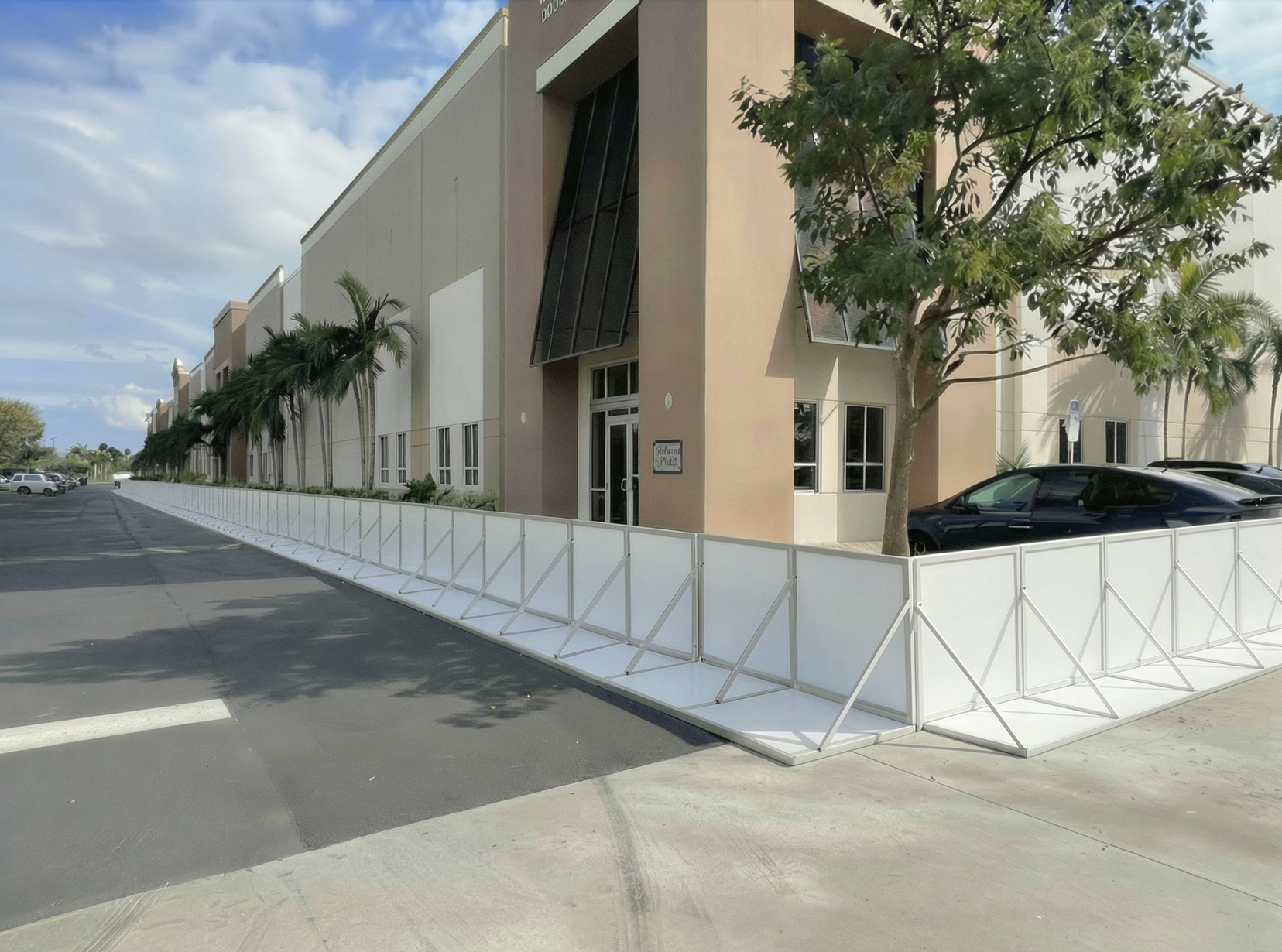

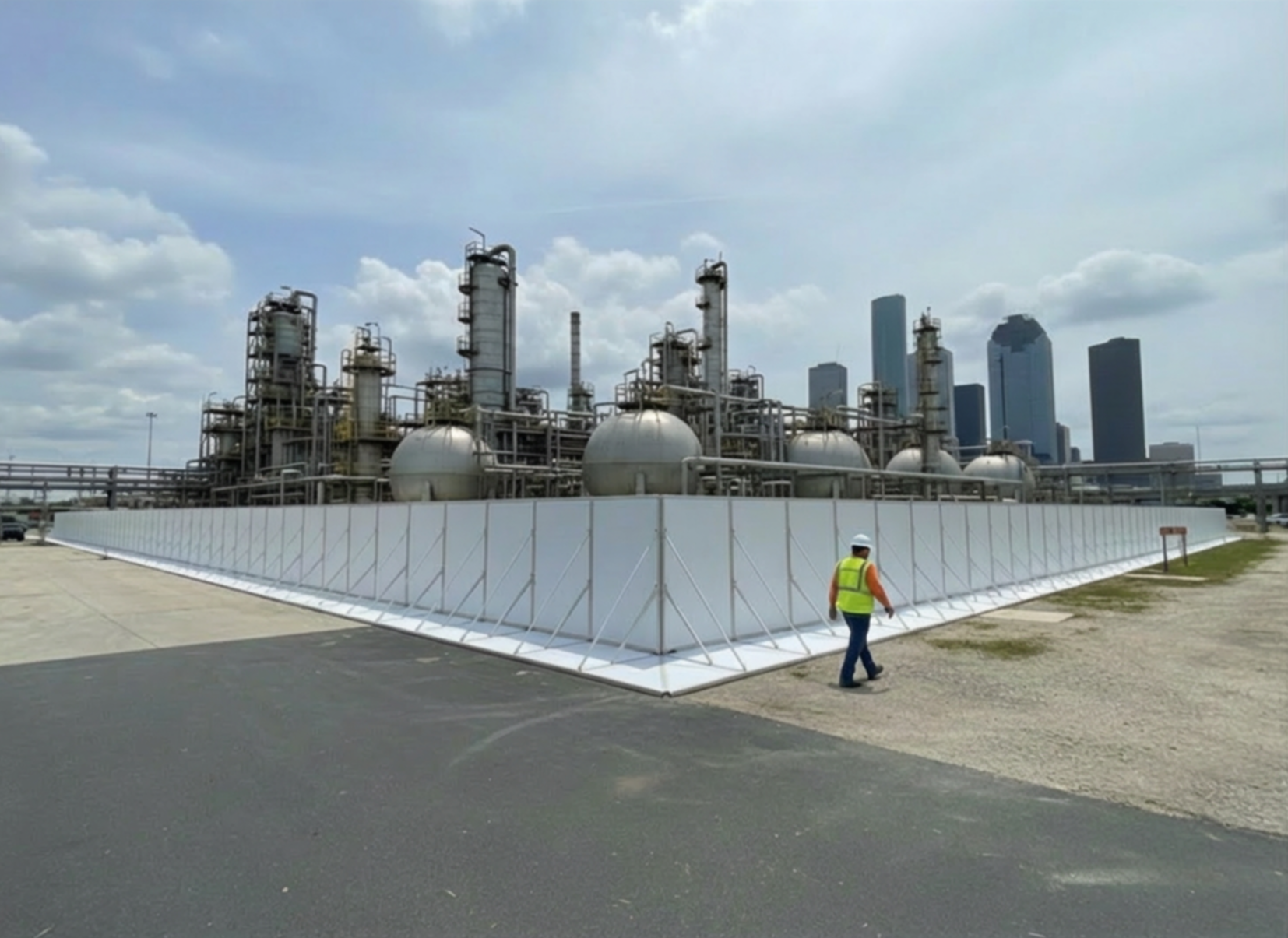

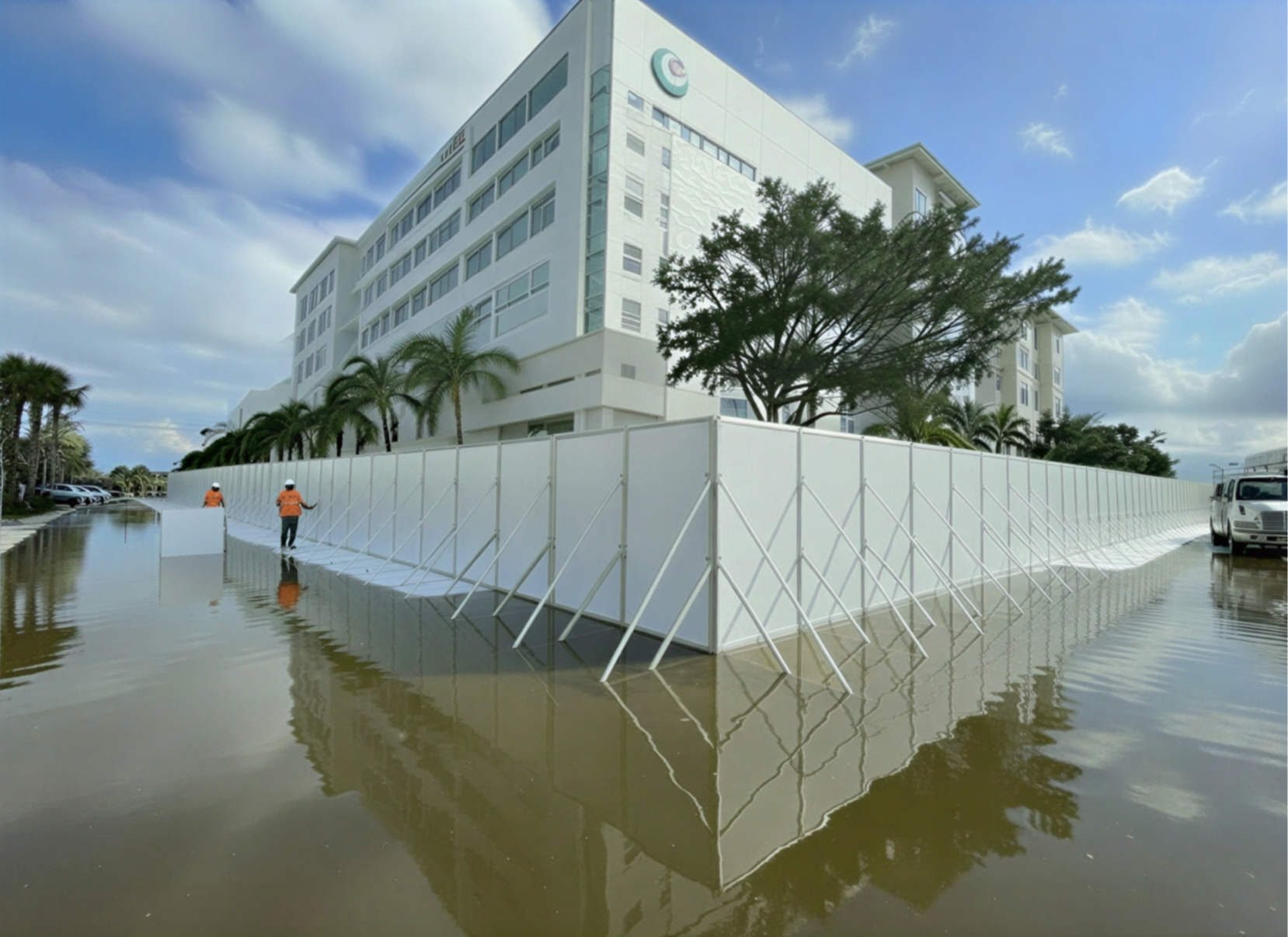

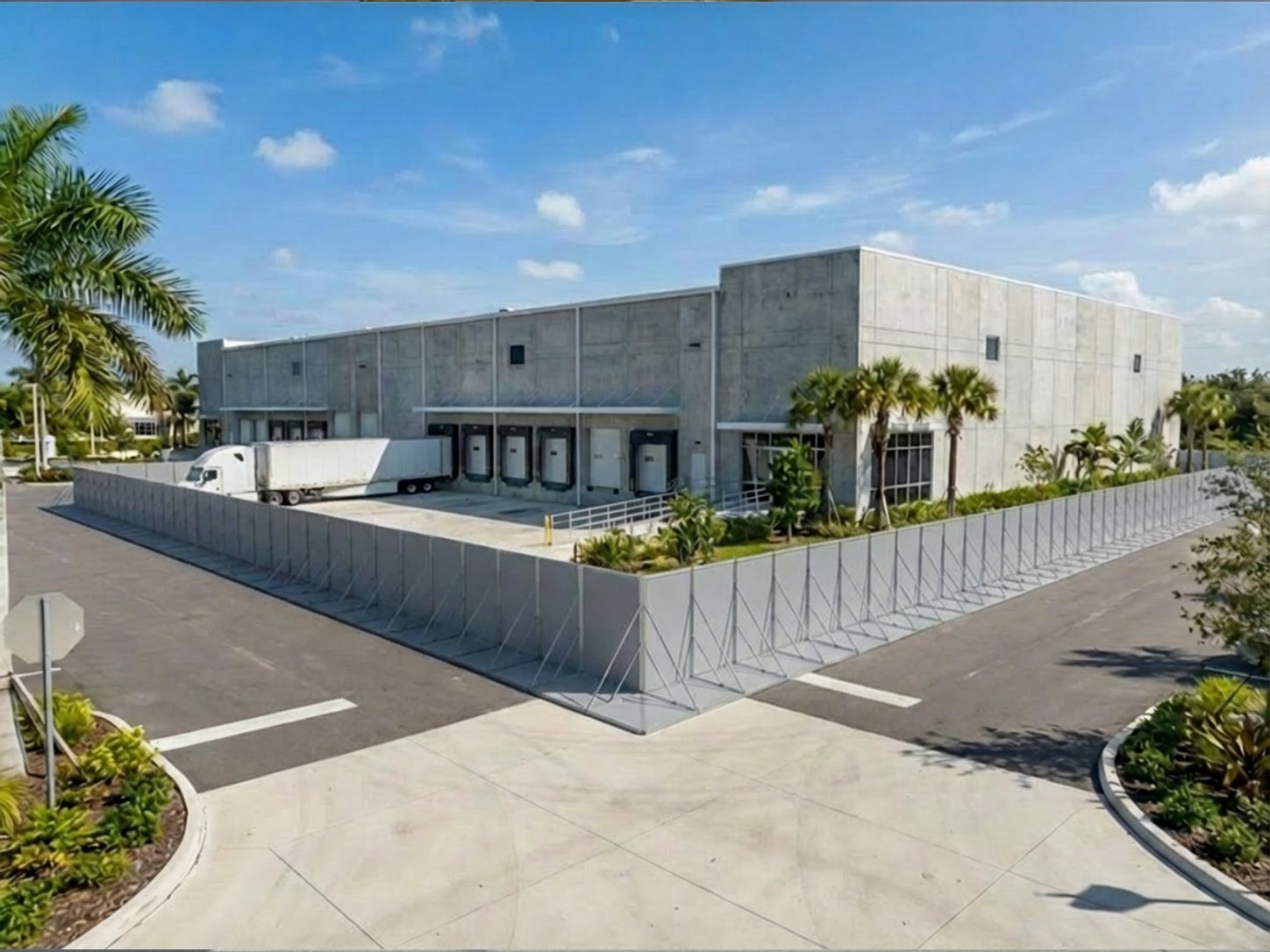

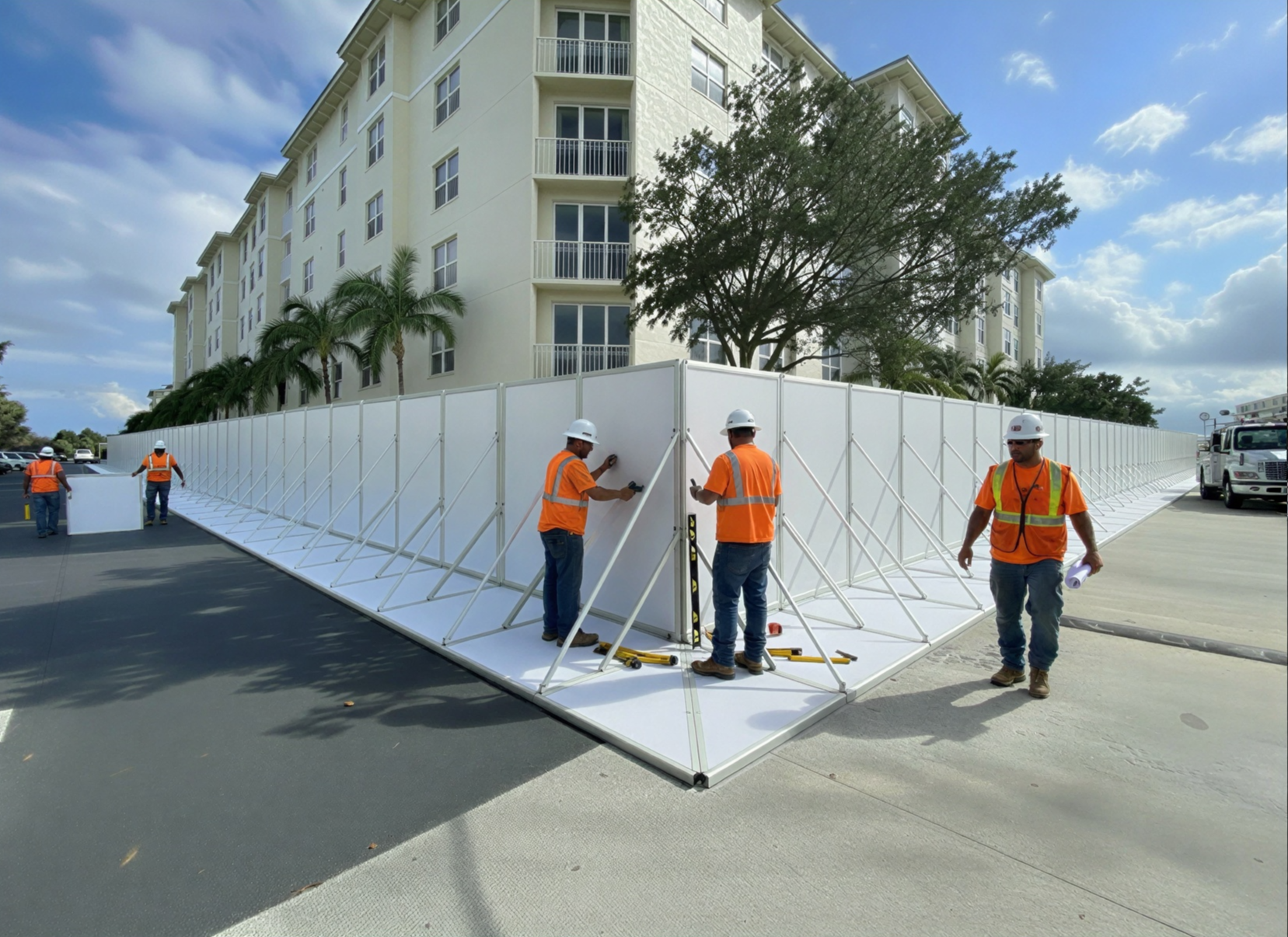

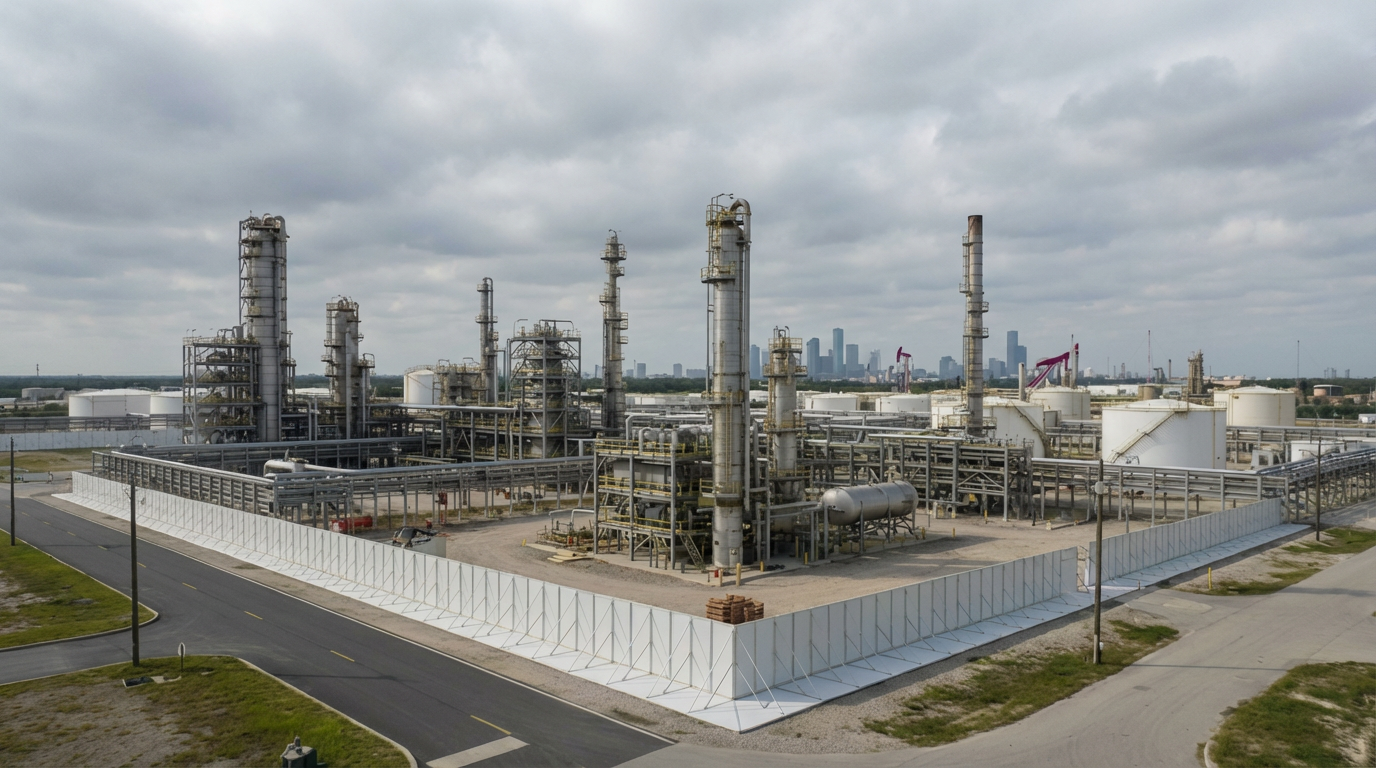

Perimeter protection around buildings

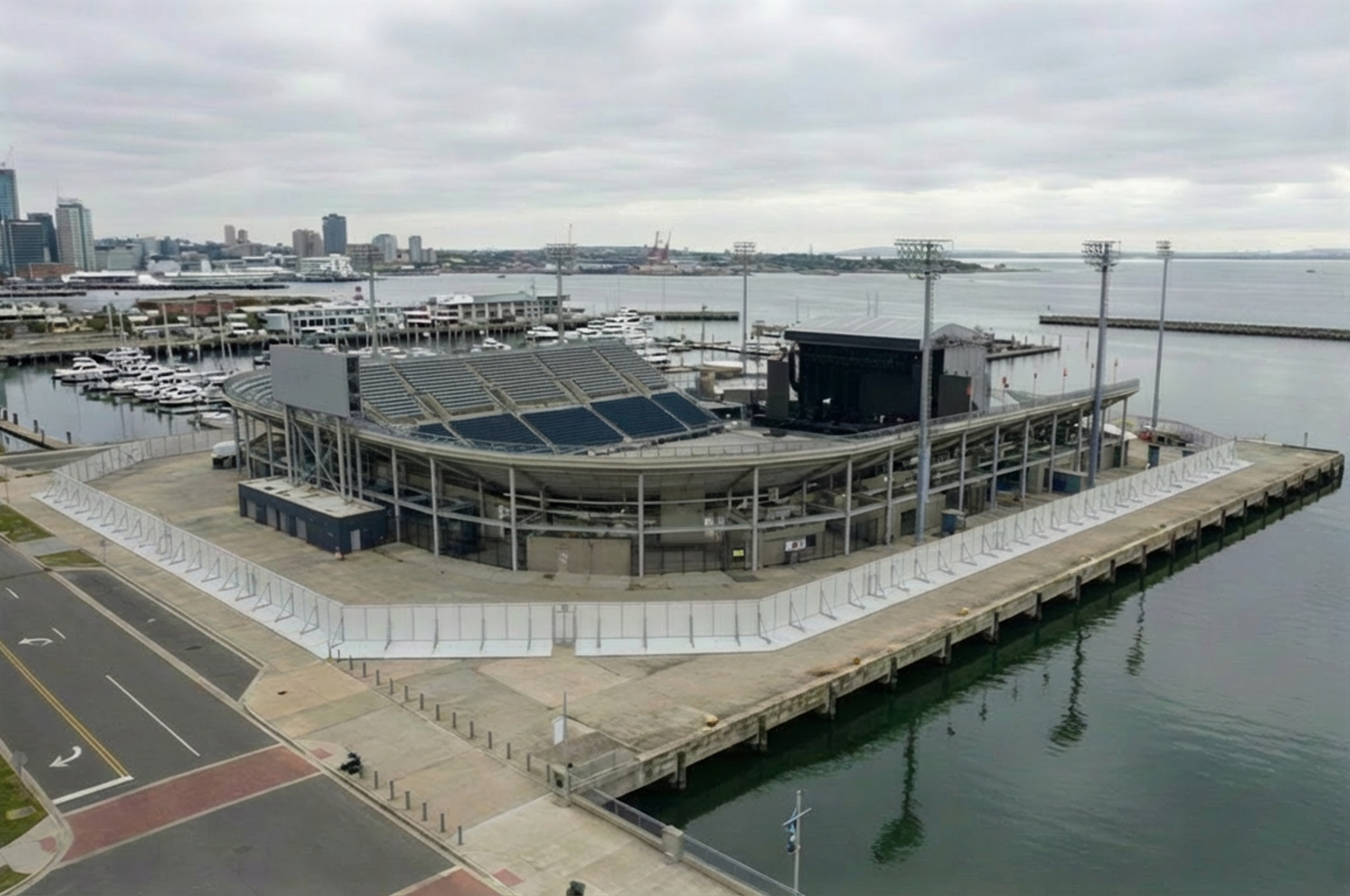

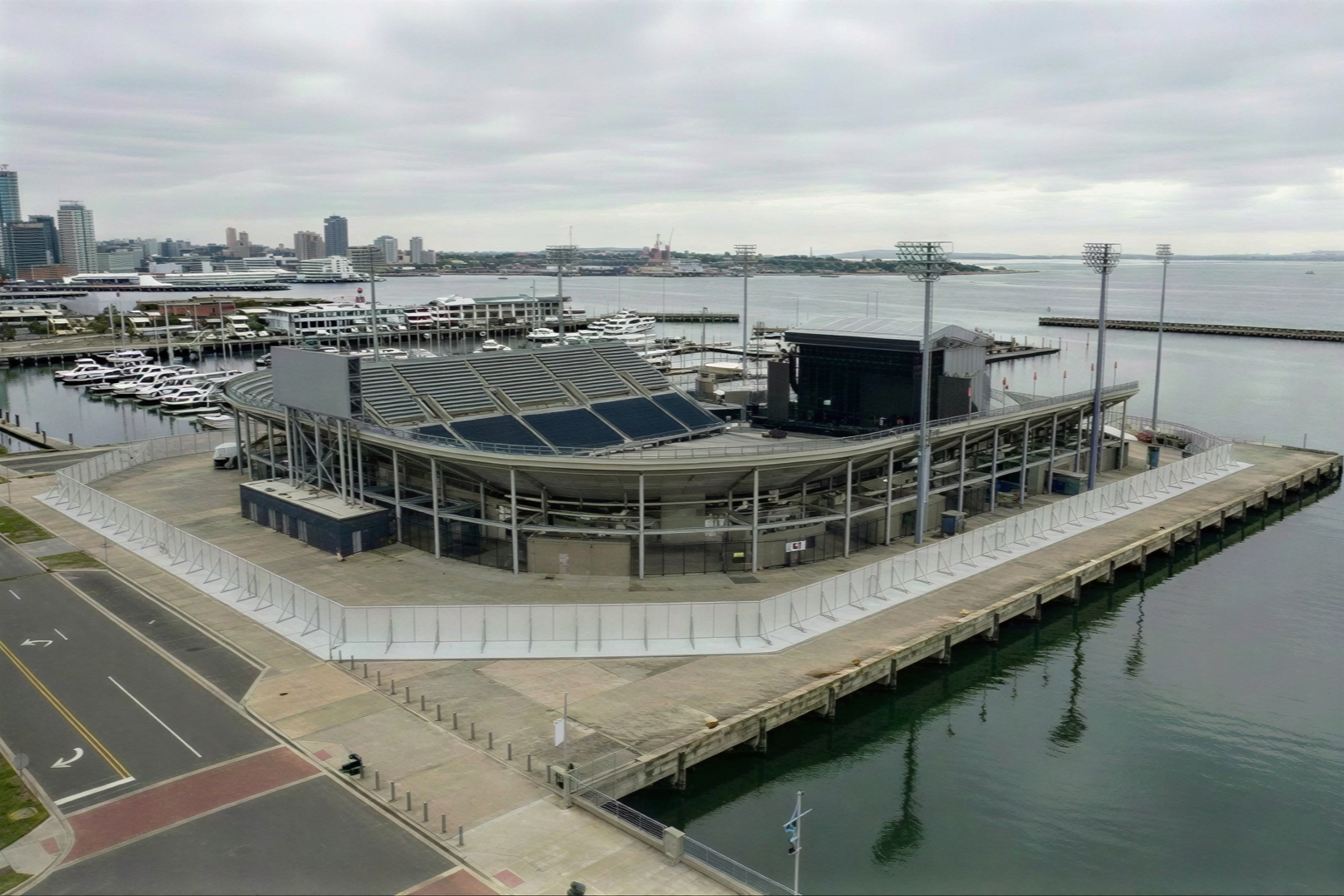

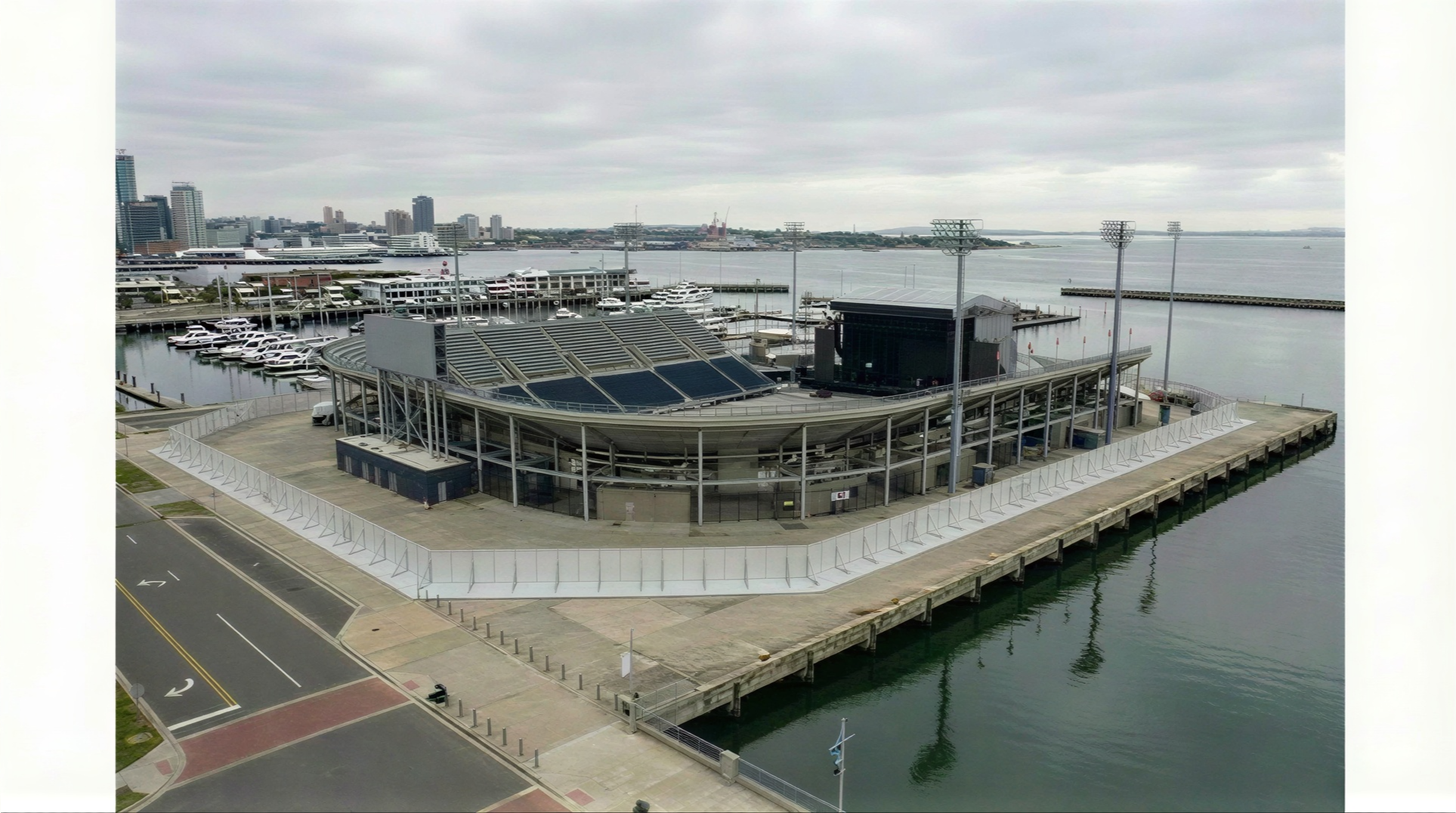

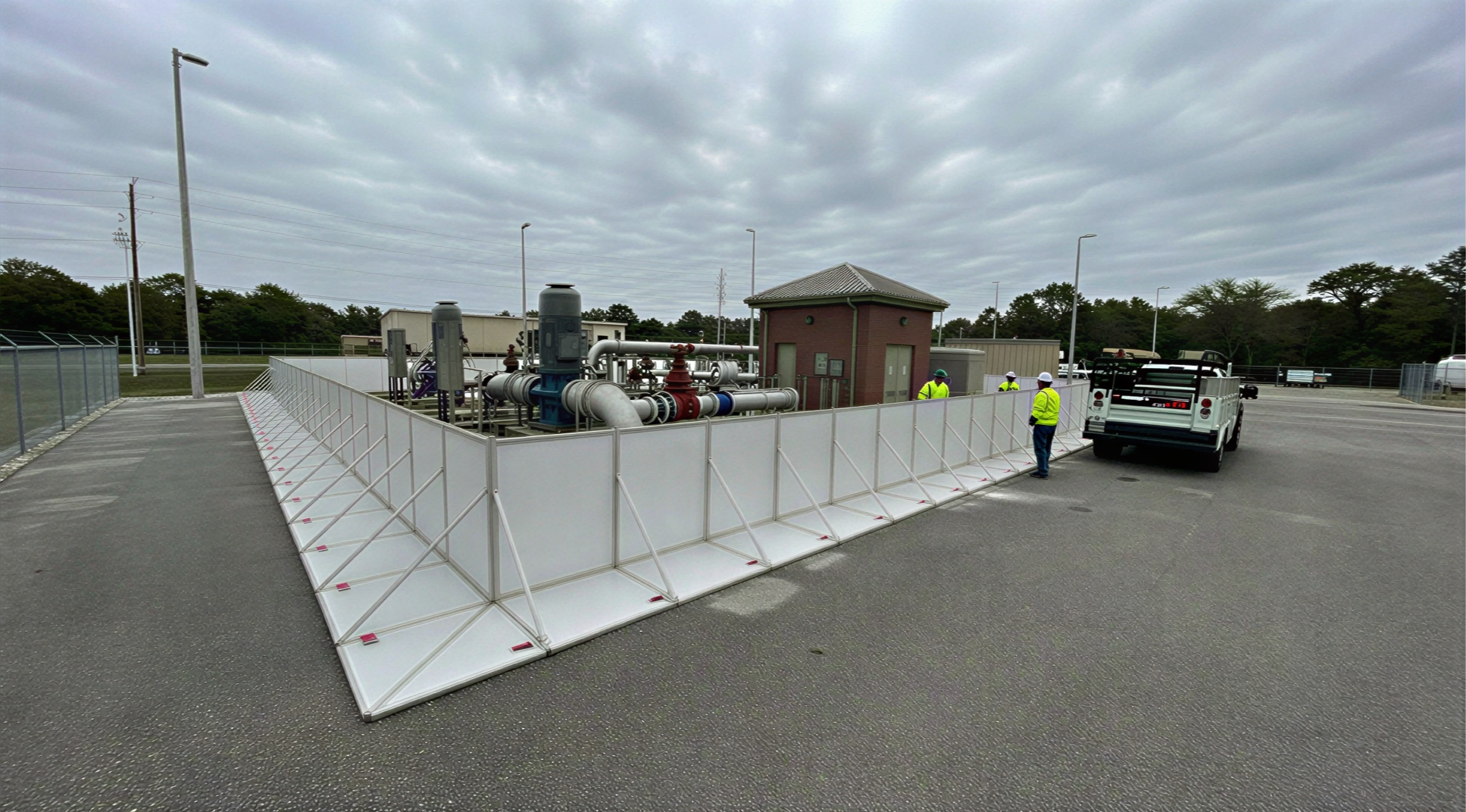

Infrastructure flood mitigation
Transit system flood protection
Construction site protection
Vulnerable opening protection

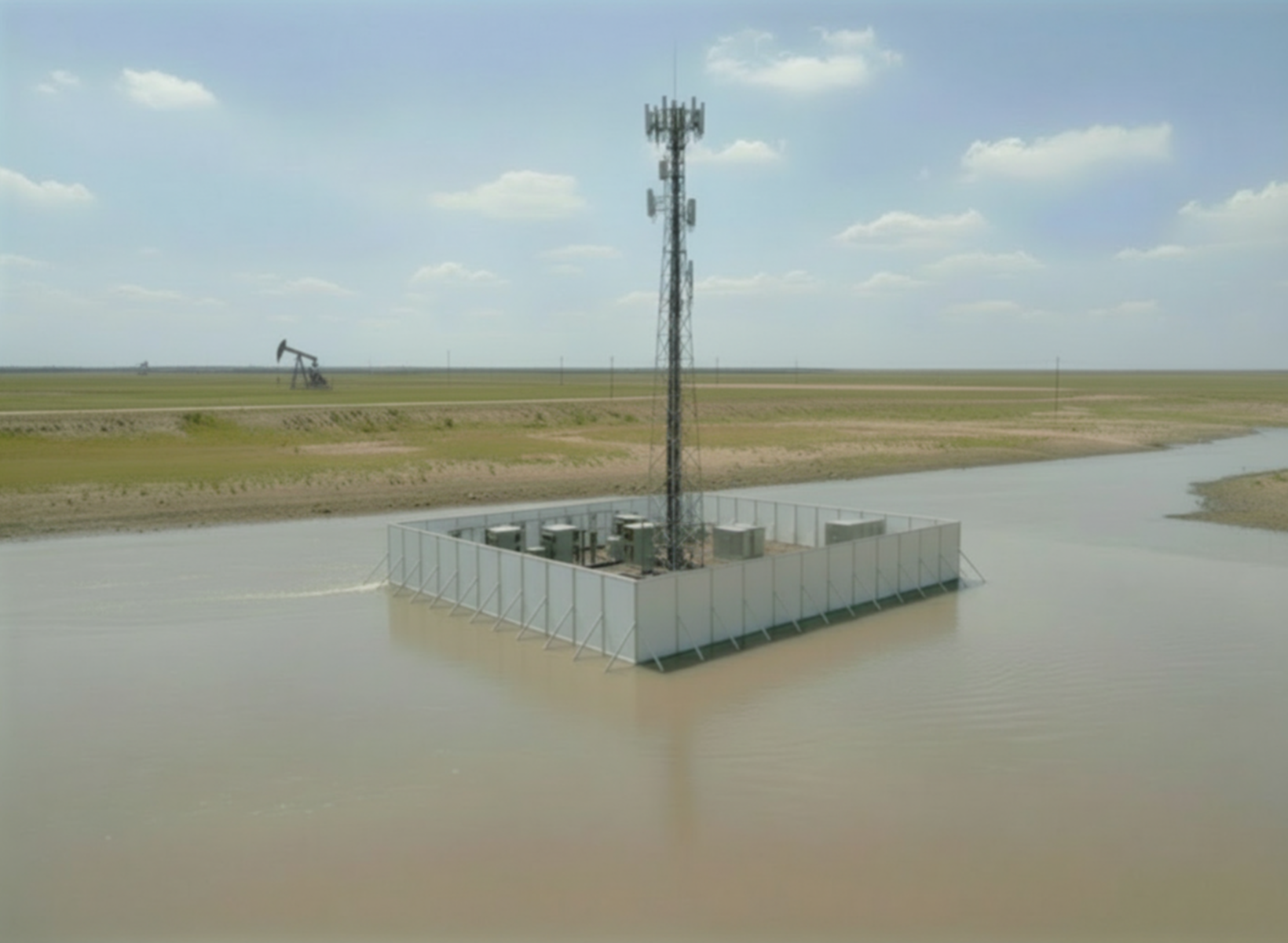

Storm surge barriers
River water diversion

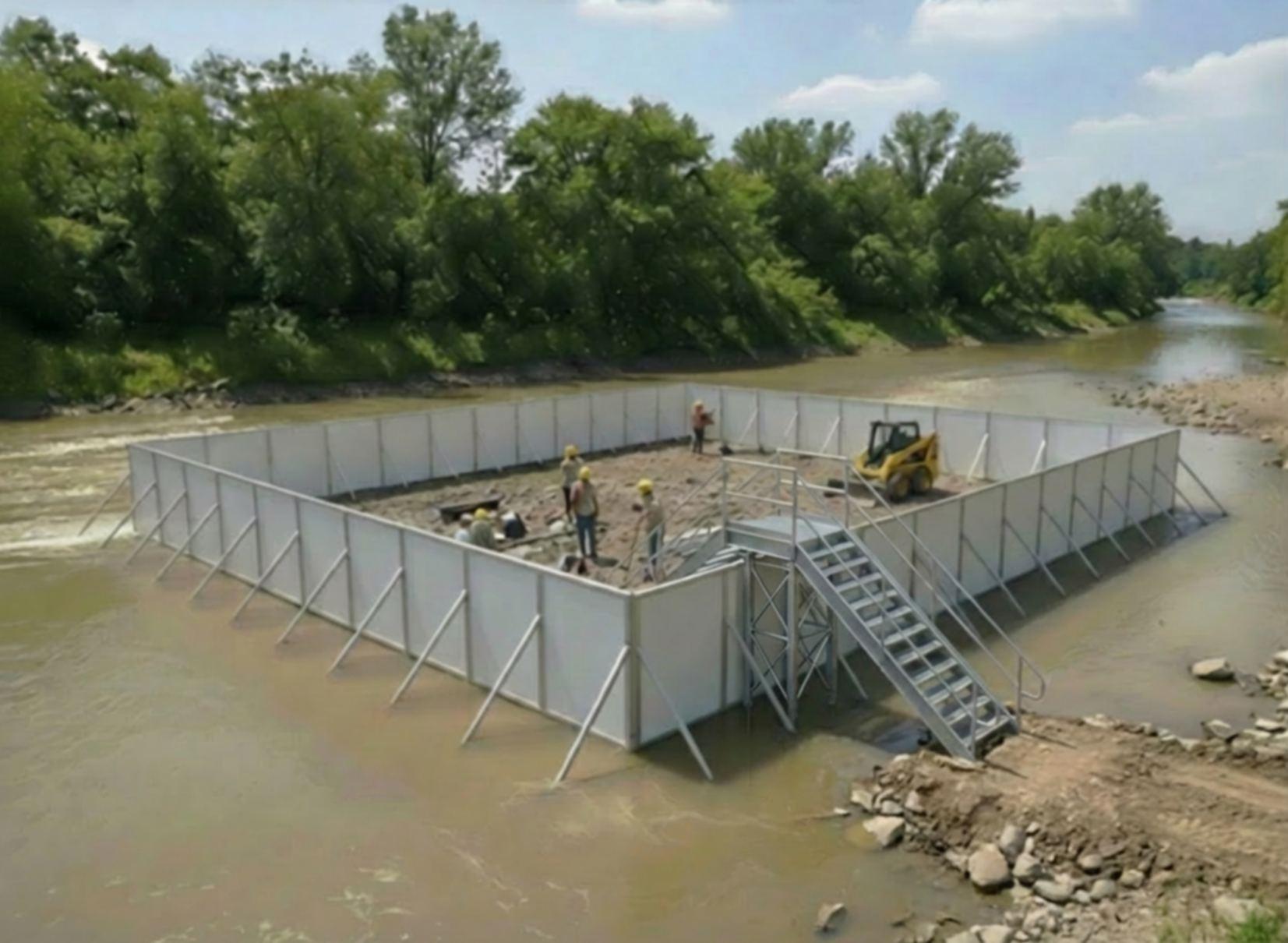

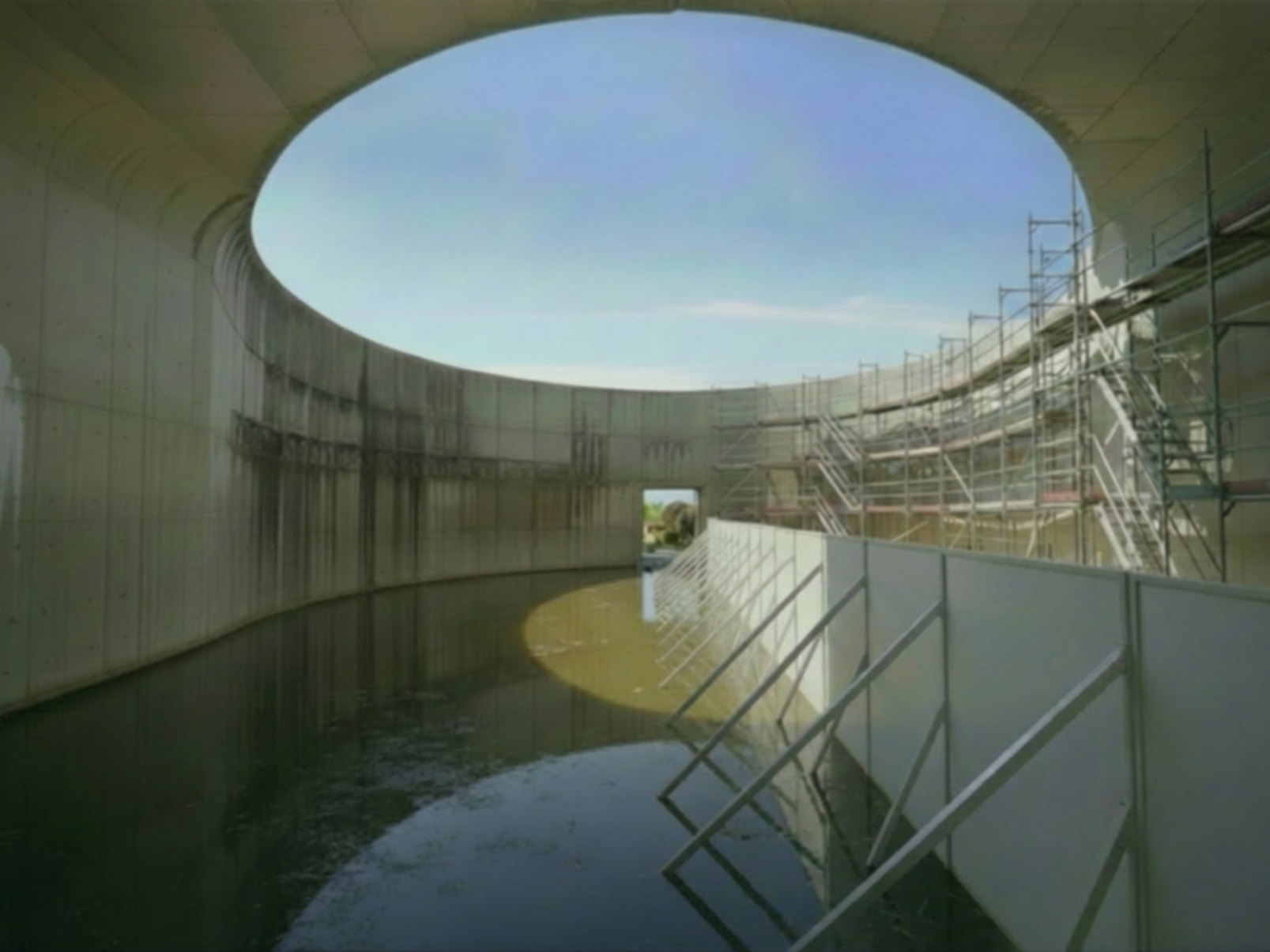

Cofferdams

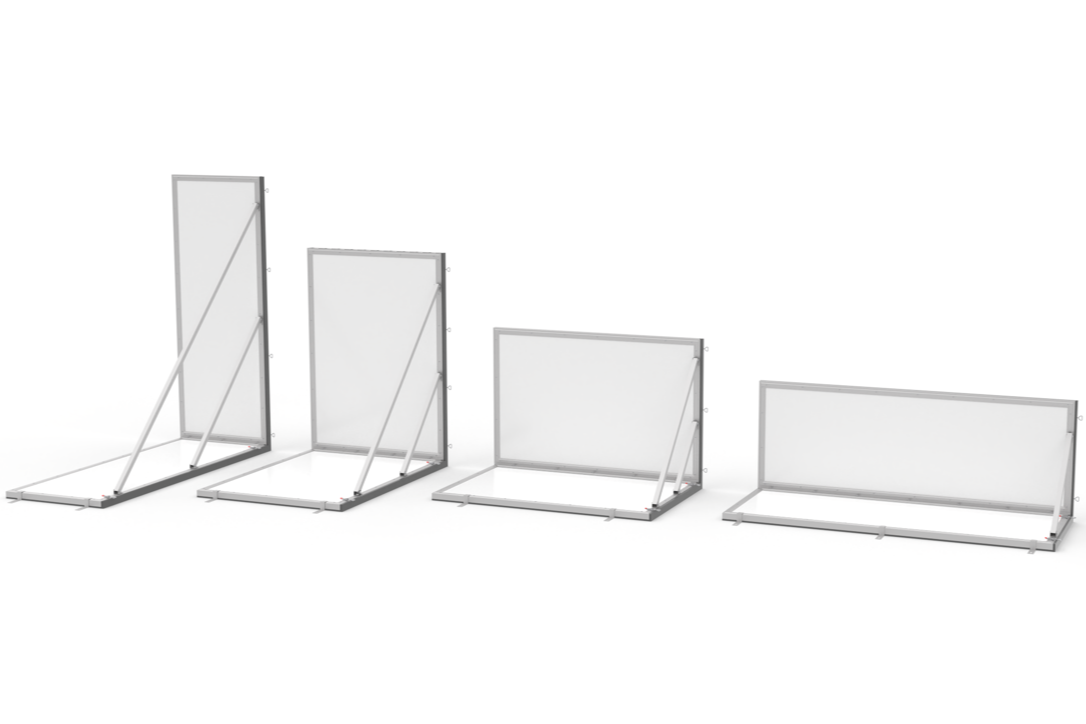

BlueFIN™ is available in multiple heights and widths, and include 90 degree and 45 degree turn panels for advanced layout flexibility.

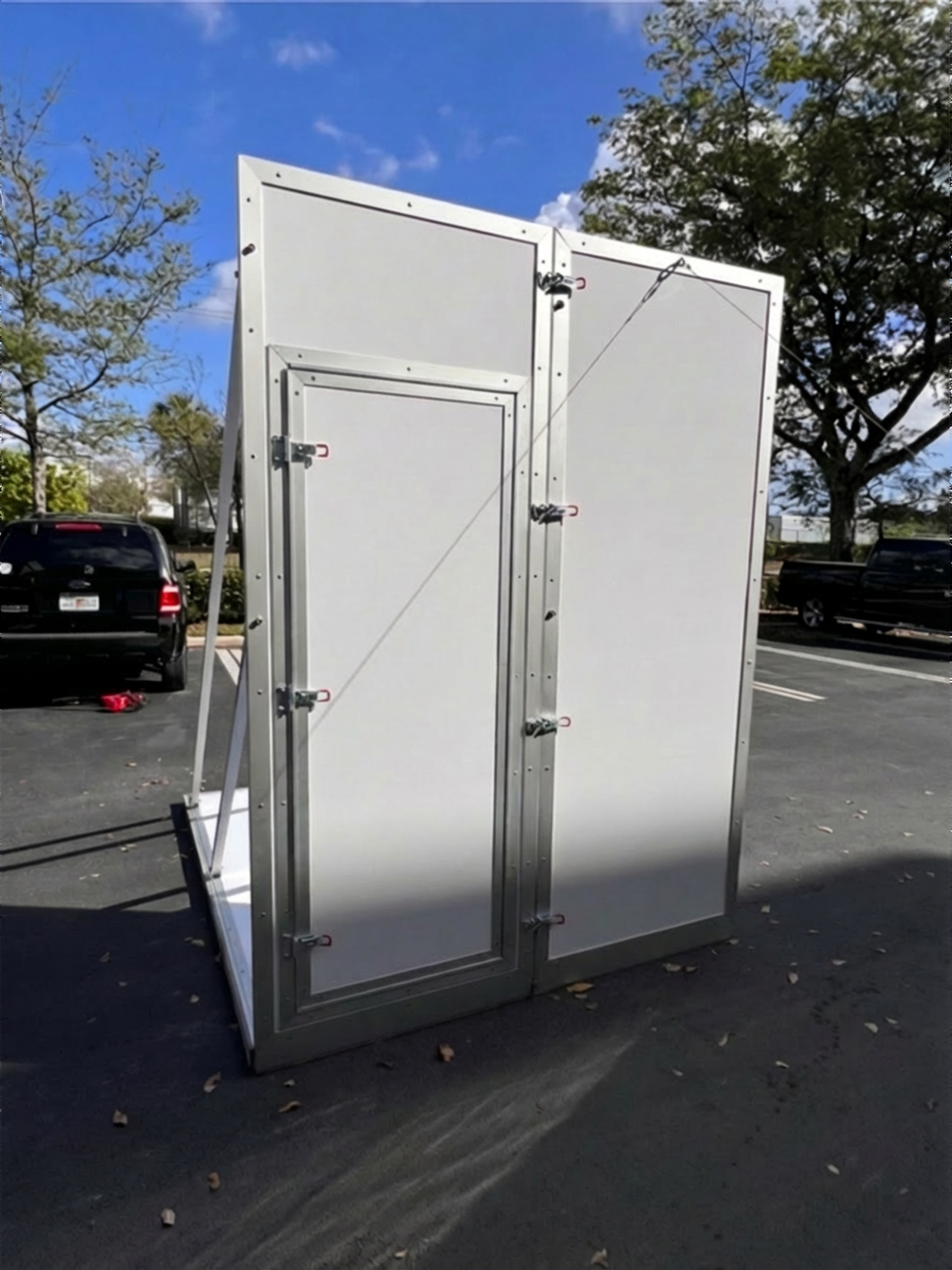

For areas where access is required in advance of a flood, you can easily disconnect section panels without affecting the flood walls integrity, or utilize our access door panel, which provides a 30” opening hatch for emergency needs.
Why Protect Against Flooding With BlueFIN™ Flood Walls?
The BlueFIN™ interconnecting flood panel is a rapidly deployable flood wall system that can be installed by a small crew quickly in advance of a storm. BlueFIN’s innovative rapid connection system allows panels to be placed alongside each other and connected instantly using a series of easy-to-use industrial latches. These latches pressurize the seal between panels, creating a durable integrated flood wall. Additional closed-cell HDPE rubber seal on the underside prevents leakage beneath panels.
Additionally, BlueFIN™ is lightweight, yet strong, due to its engineered composite honeycomb core. This structural core is surrounded by durable 6063-T6 aluminum extrusions which provide a rigid support frame that allows the system to handle extreme hydrodynamic and hydrostatic loads, while also creating a durable connection between sections.

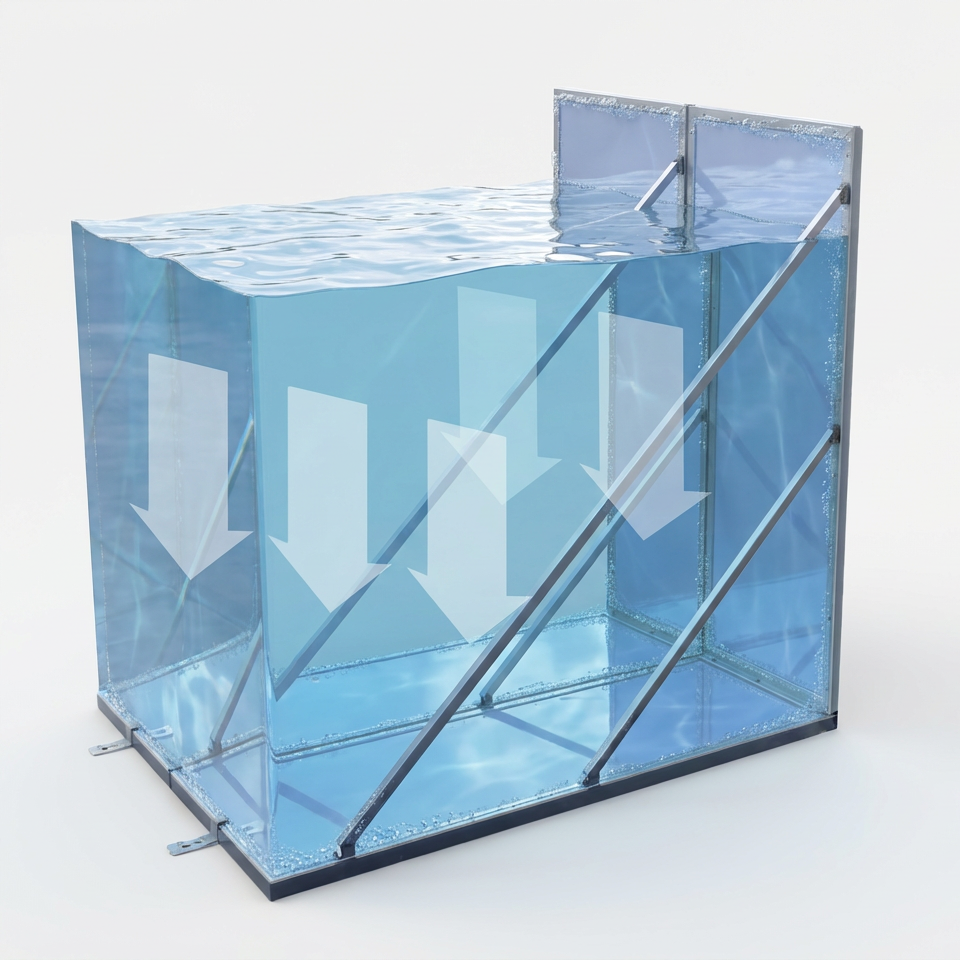

Flood panel sections connect to form an L-shaped flood barrier, which is ballasted downward as floodwater rises against the panels. Diagonal support braces and anchoring cables are designed to resist lateral (horizontal) forces - such as wind, seismic activity, or racking forces — by transferring these loads through tension cables and compression loads down to the ballasted base.
For additional wind resistance, in advance of flooding, BlueFIN™ features a ground mounting bracket that attaches to the front of the water facing flood panel and an optional aircraft grade anchoring cable that spans diagonally from the top of each panel to the dry-side ground behind.
Durable Flood Protection
Flexible Configurations

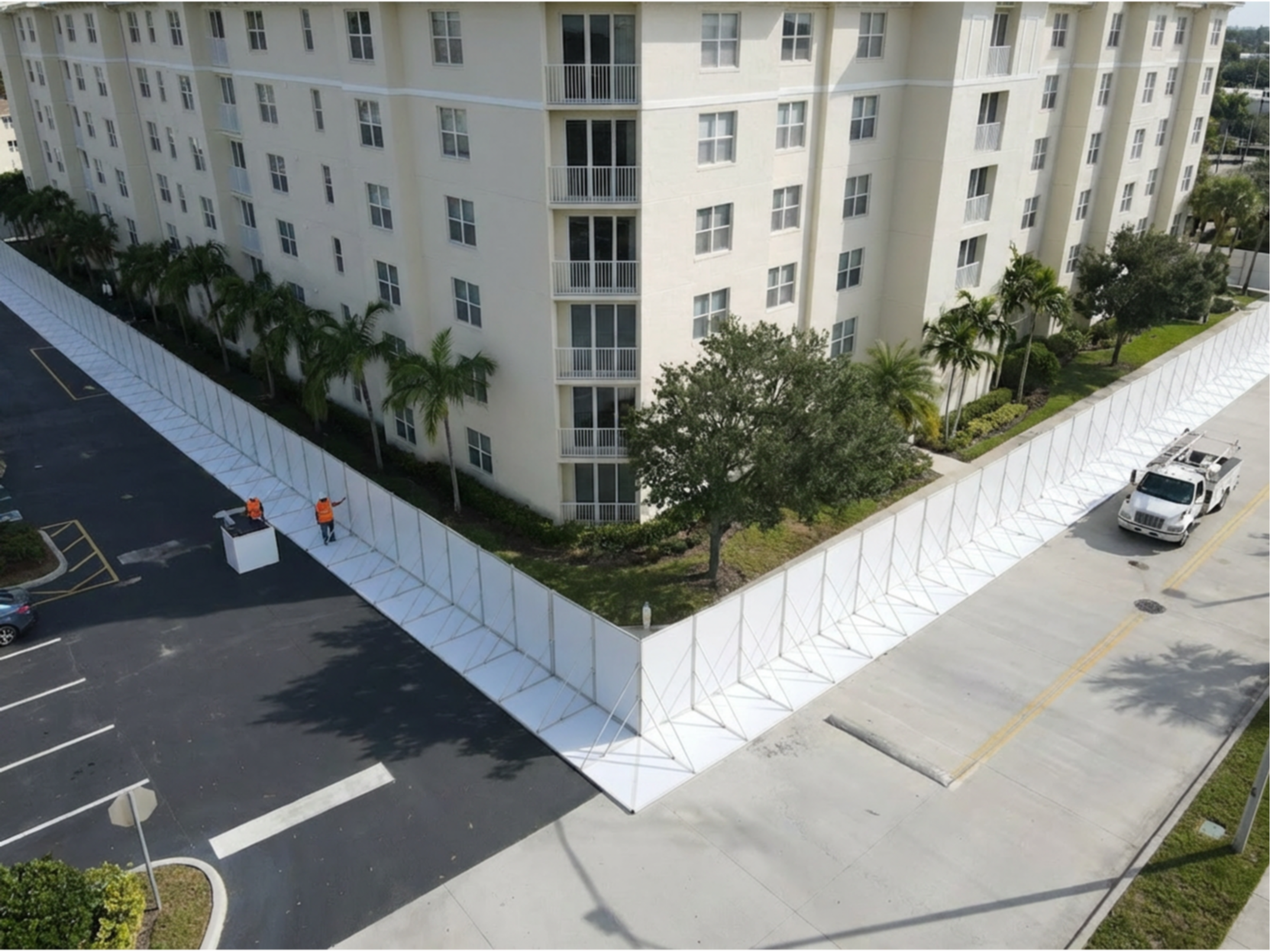

Perimeter Protection
Flood Panel Anchors
Longlasting and Reusable
How Does the BlueFIN™ Flood Wall System Work?

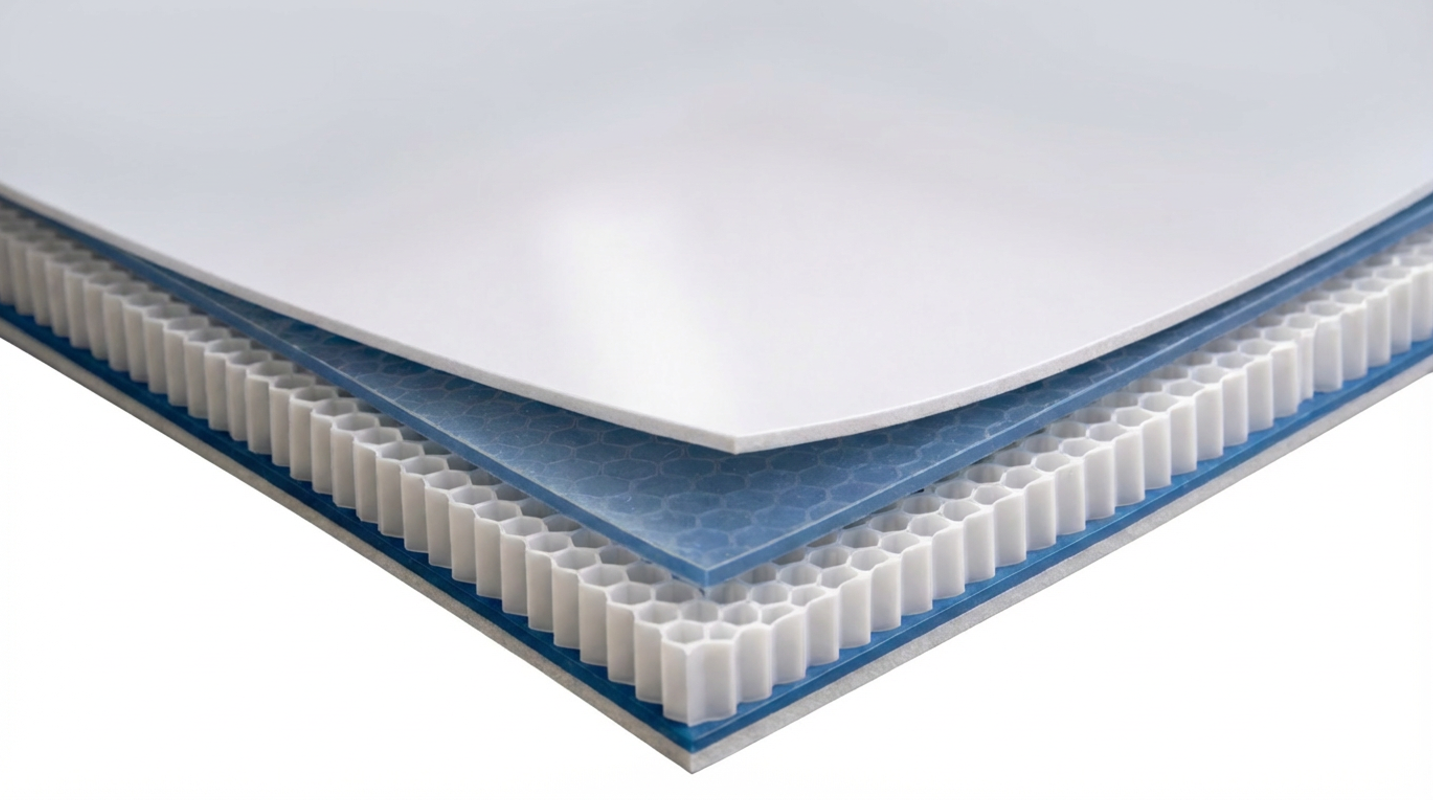

The BlueFIN™ flood panel consists of an engineered composite honeycomb and structural fiberglass core, similar to what is used on high-end boats. This core is surrounded by durable 6063-T6 aluminum extrusions which provide a rigid support frame that both allows the system to handle extreme loads, but also provides an area for a durable connection between sections.
The main panels interconnect to form a continuous L-shaped barrier, and also includes corner or turn panels for full perimeter protection.
Panels are ballasted downward on the water side by the floodwaters themselves. Diagonal support braces are designed to resist lateral (horizontal) forces by transferring these loads through tension cables and compression down to the ballasted base.
For additional wind resistance, in advance of flooding, BlueFIN™ features a 316L marine grade stainless steel ground mounting bracket that attaches to the front of the water facing ground panel, and an optional aircraft grade cable that spans diagonally from the top of each panel to the dry-side ground behind.

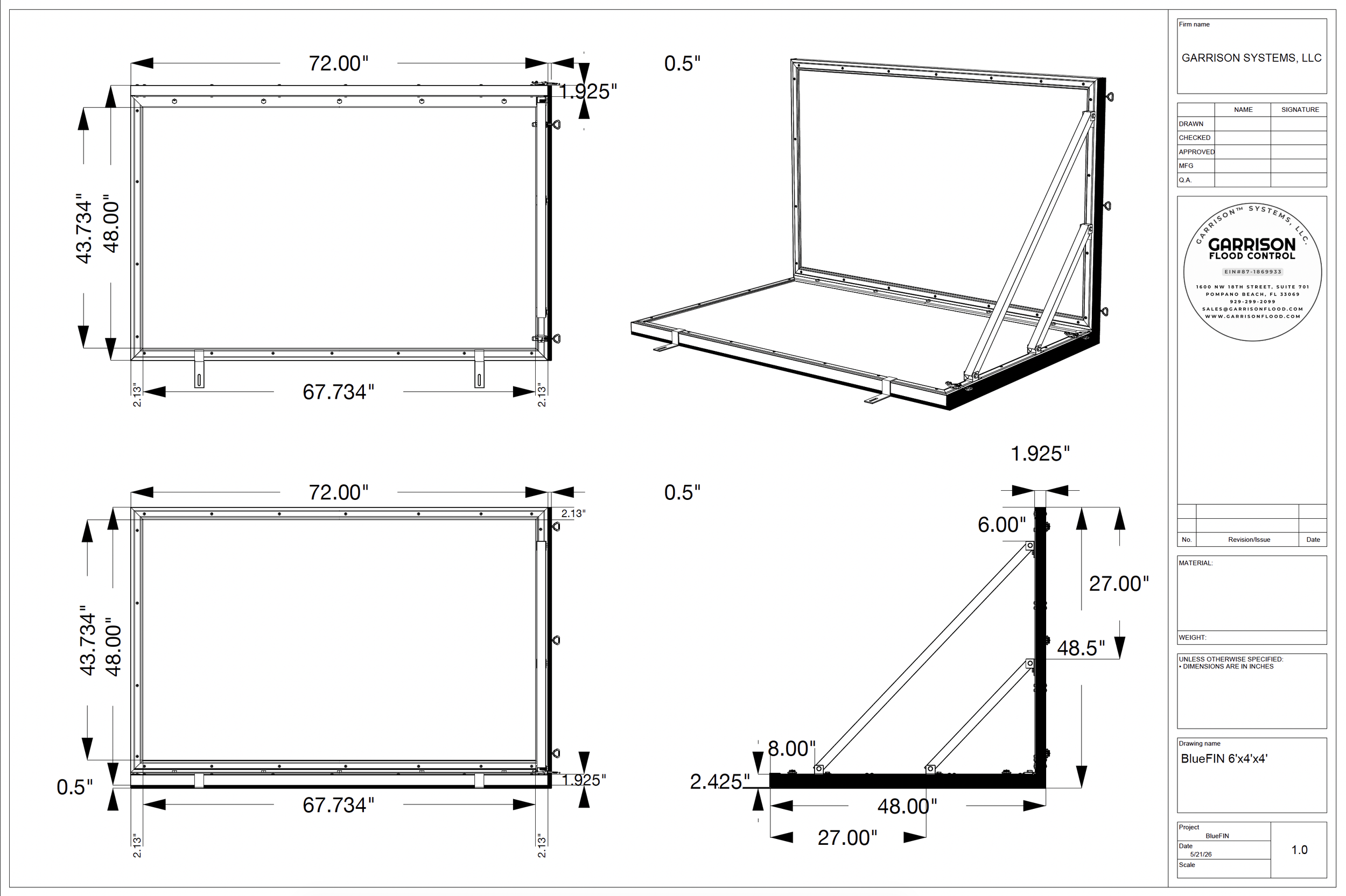

Flood Wall Panel System

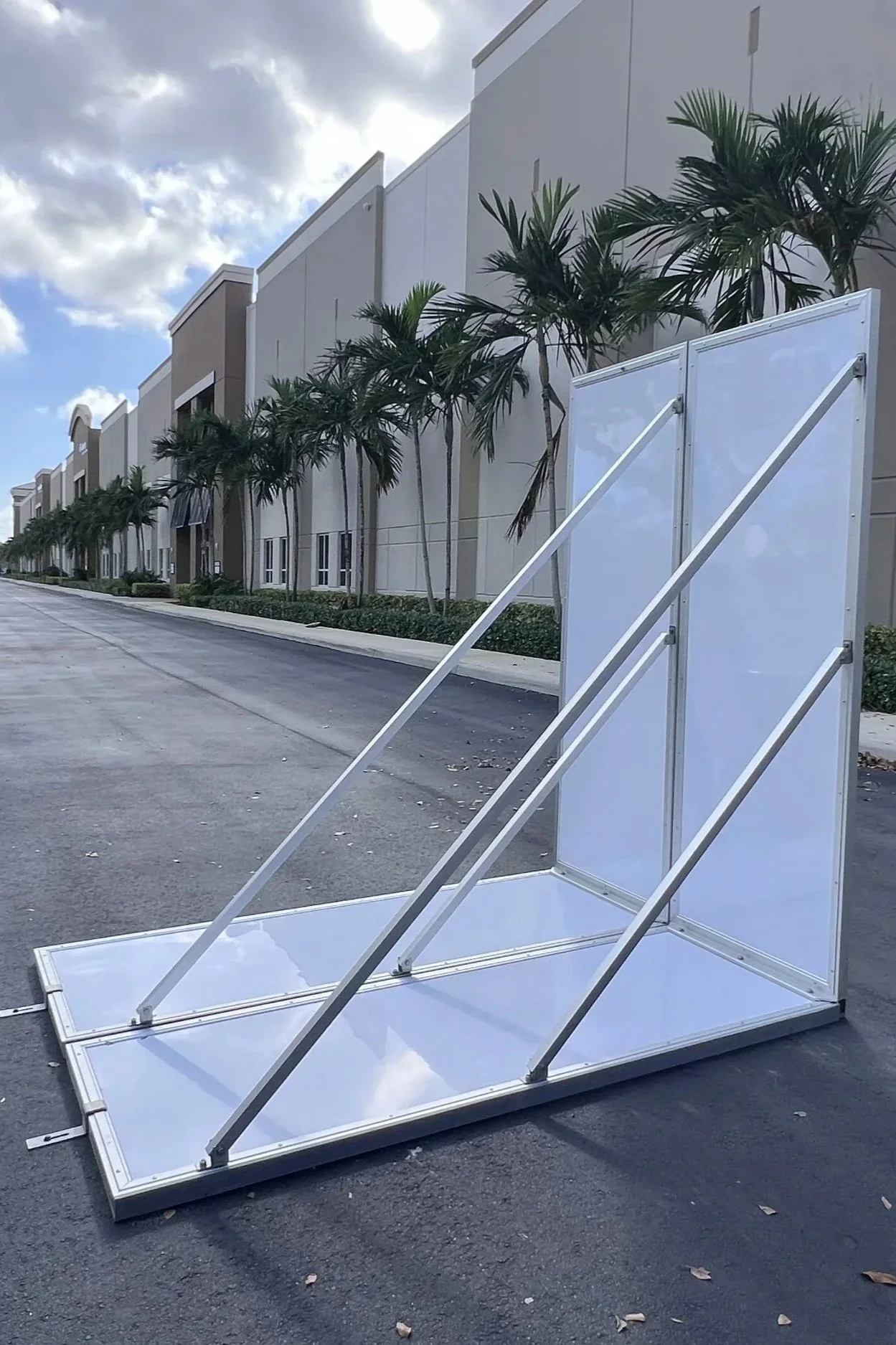

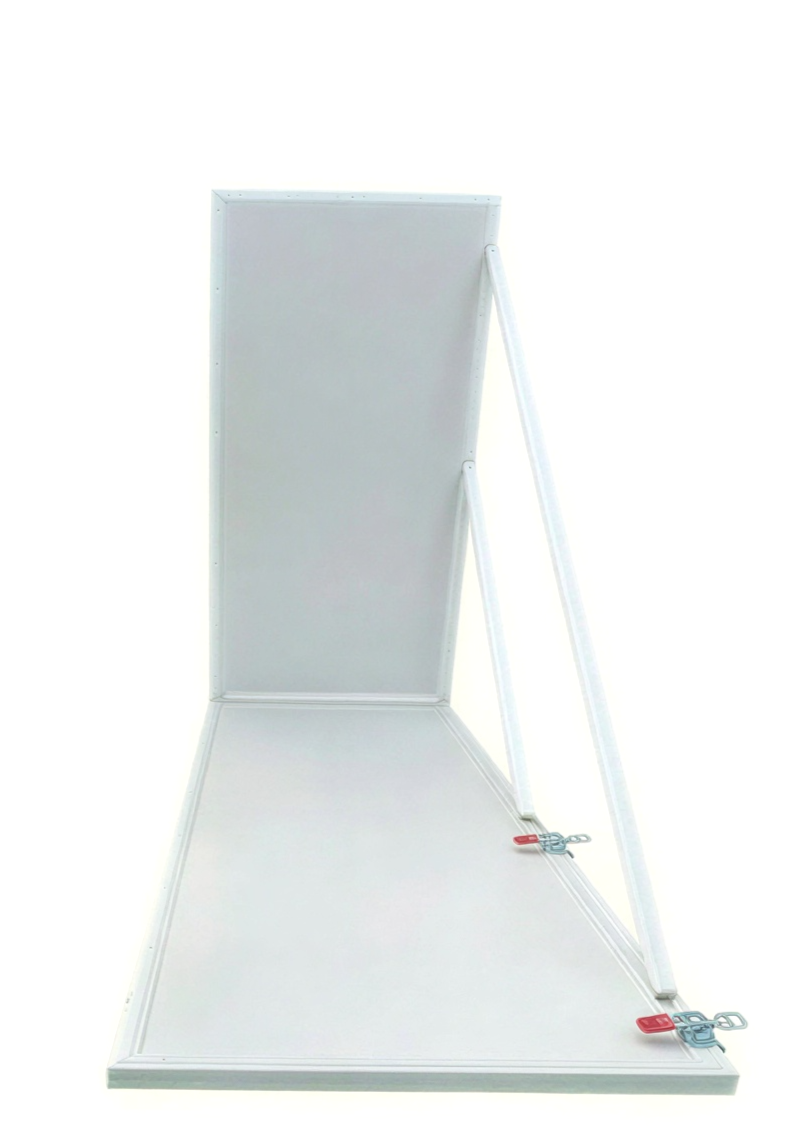

3ft x 8ft Forward-Facing View

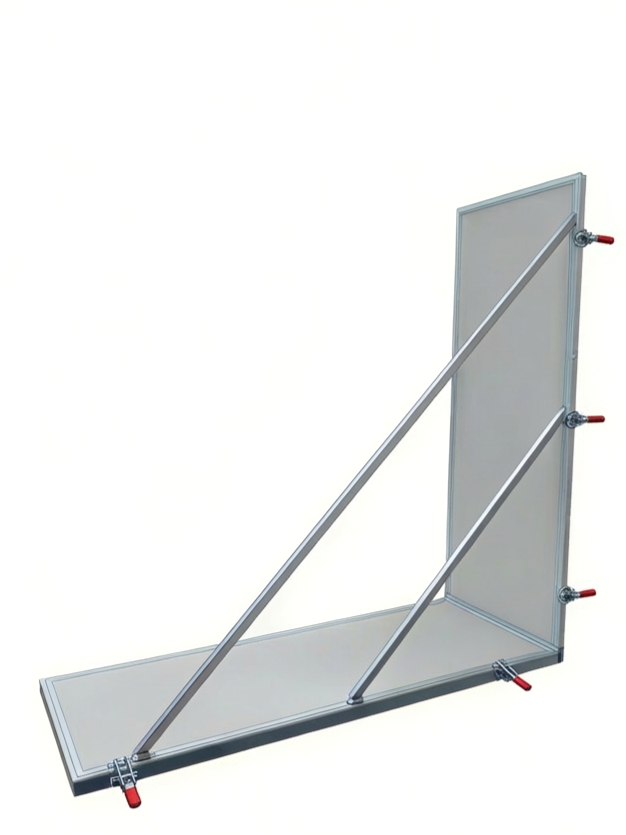

3ft x 8ft Side Panel View

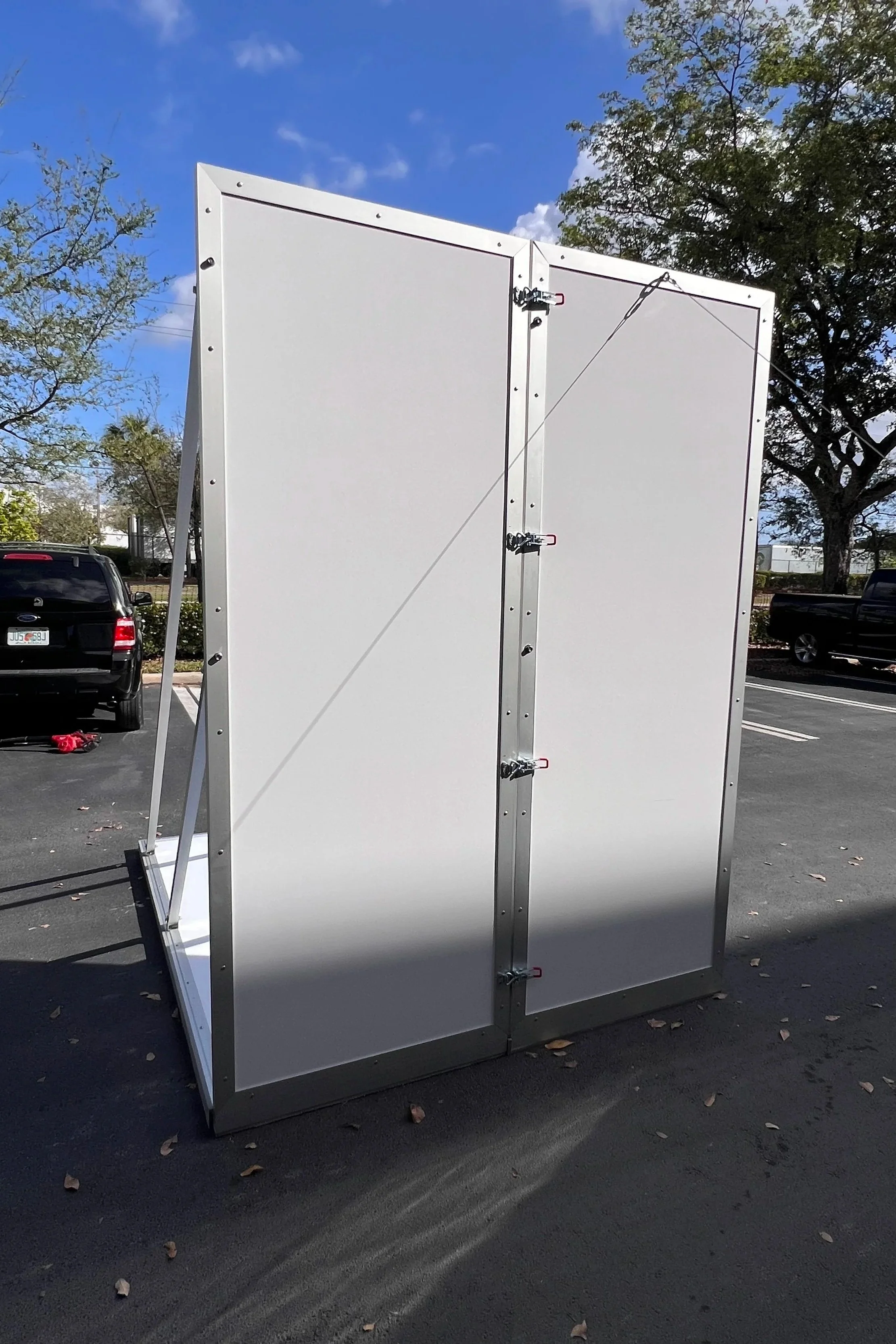

3ft x 8ft Back Panel ISO
Connection System, Ground Anchor and Wind Cable

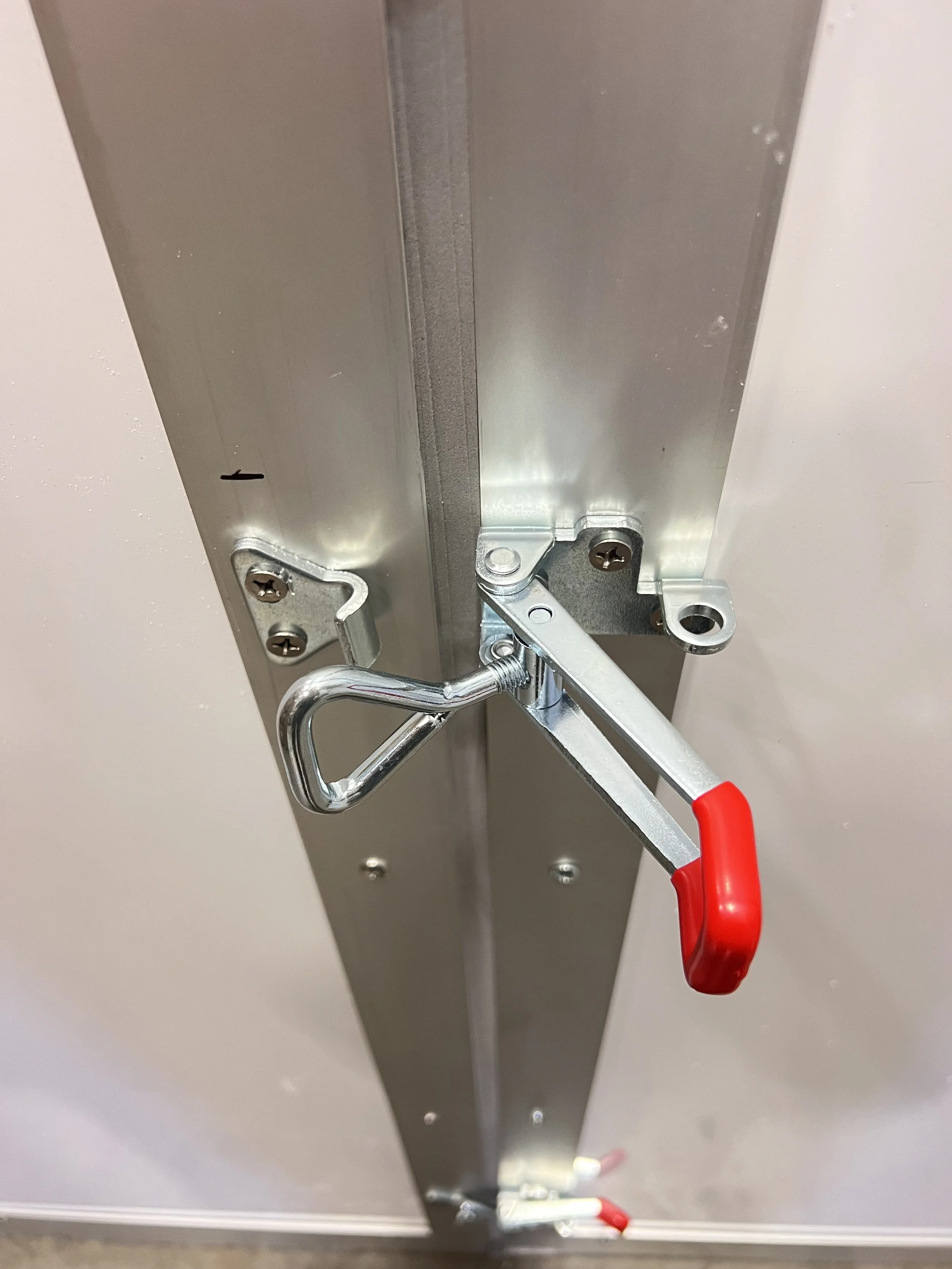

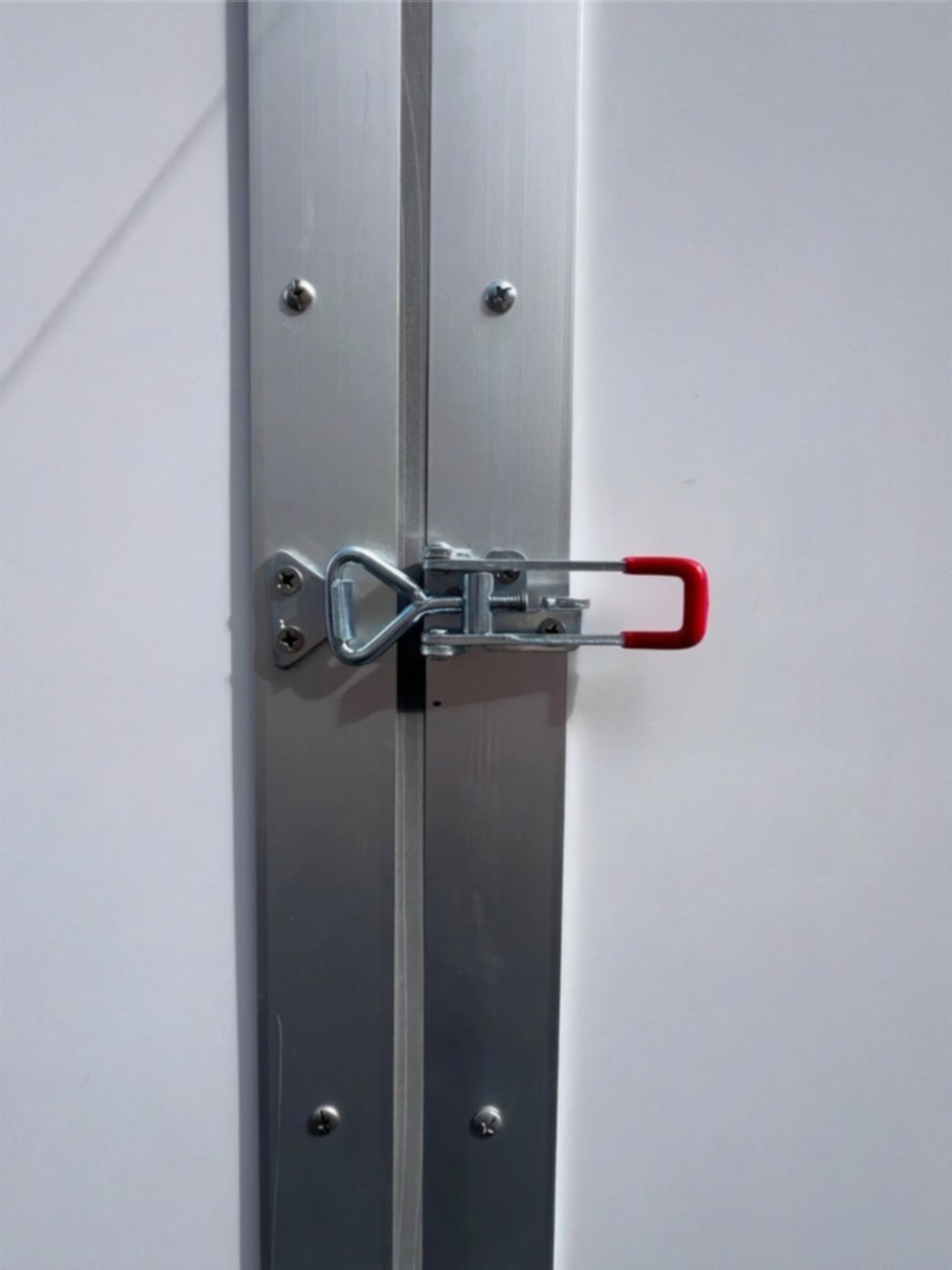

Latch Connection System

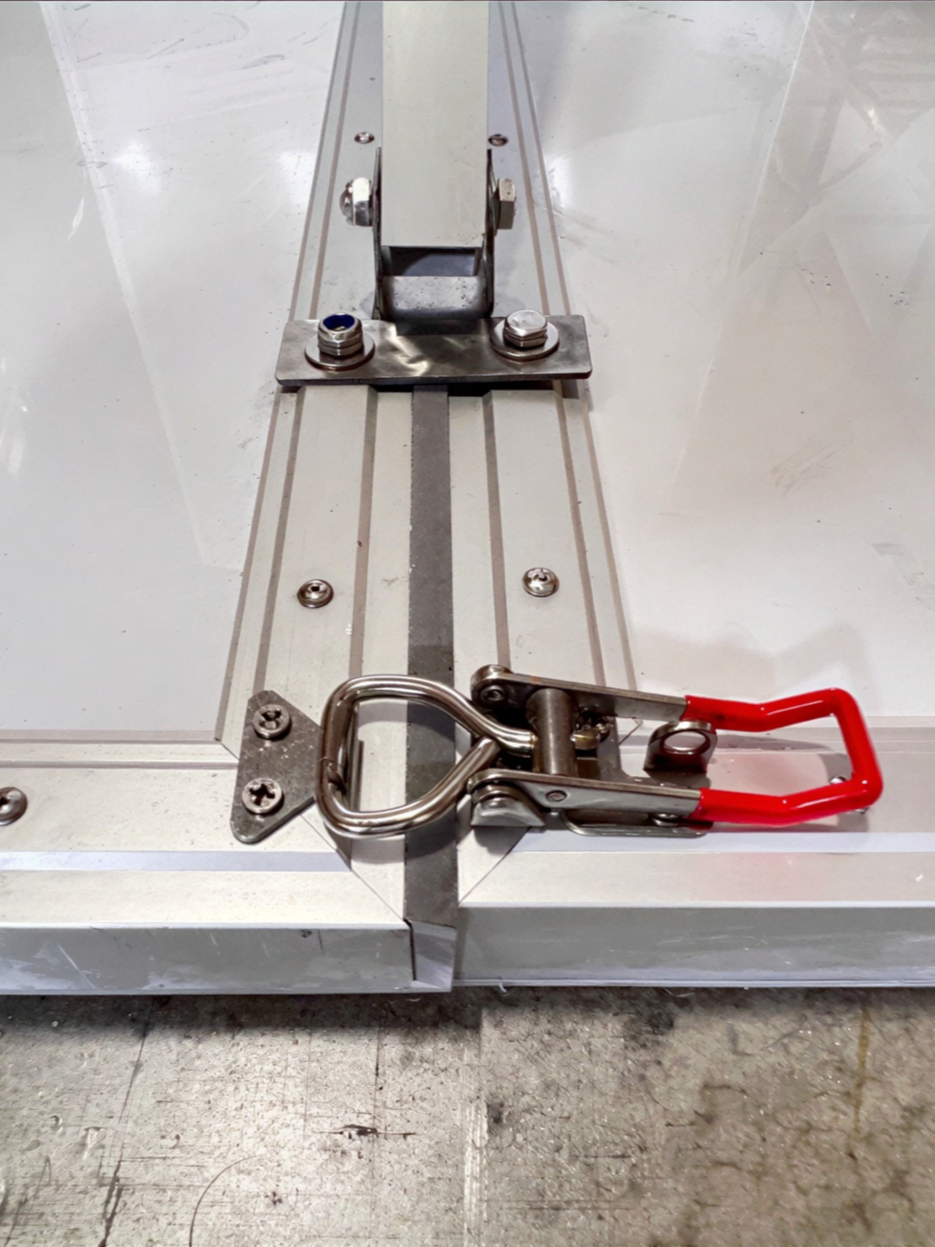

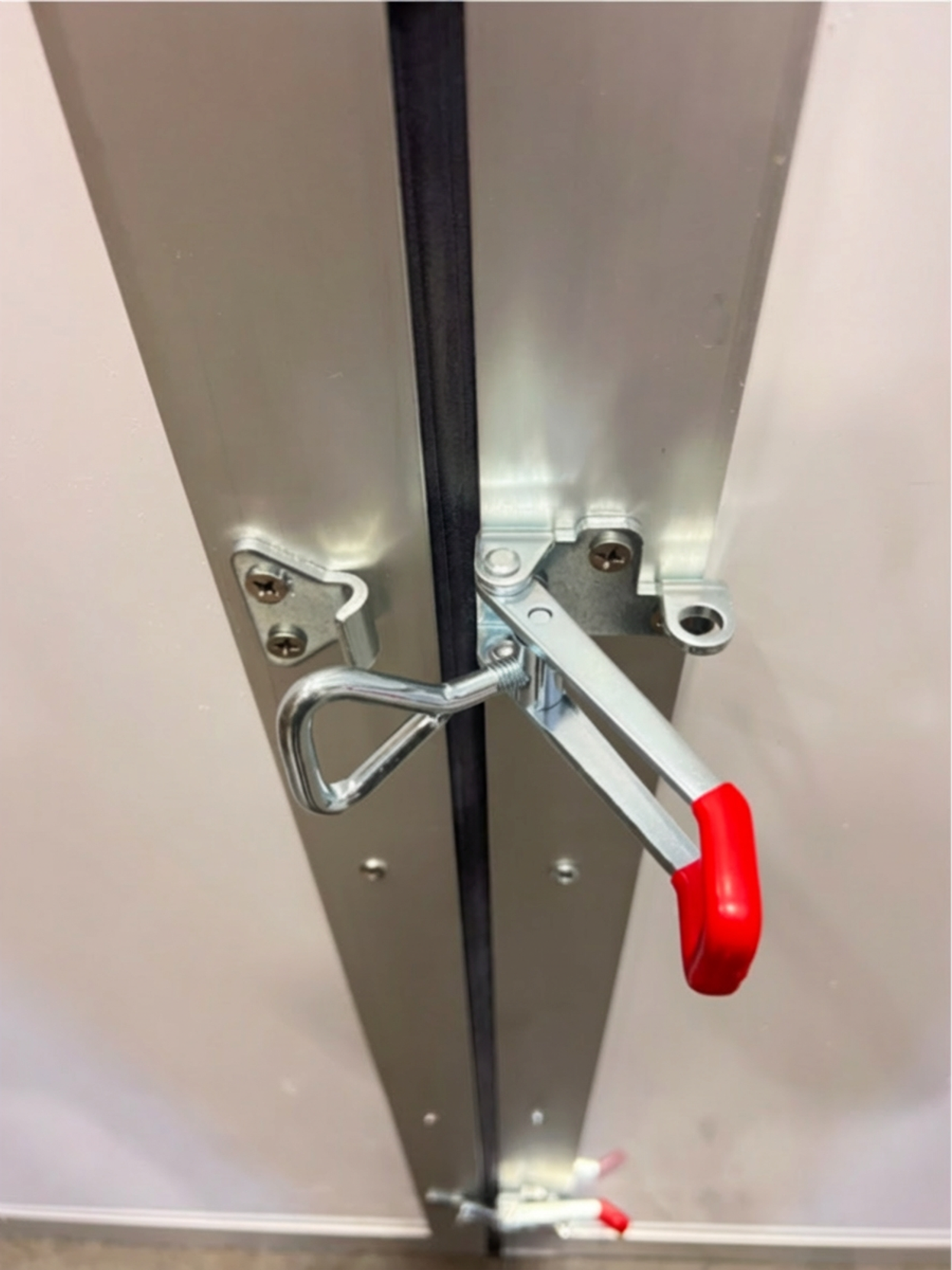

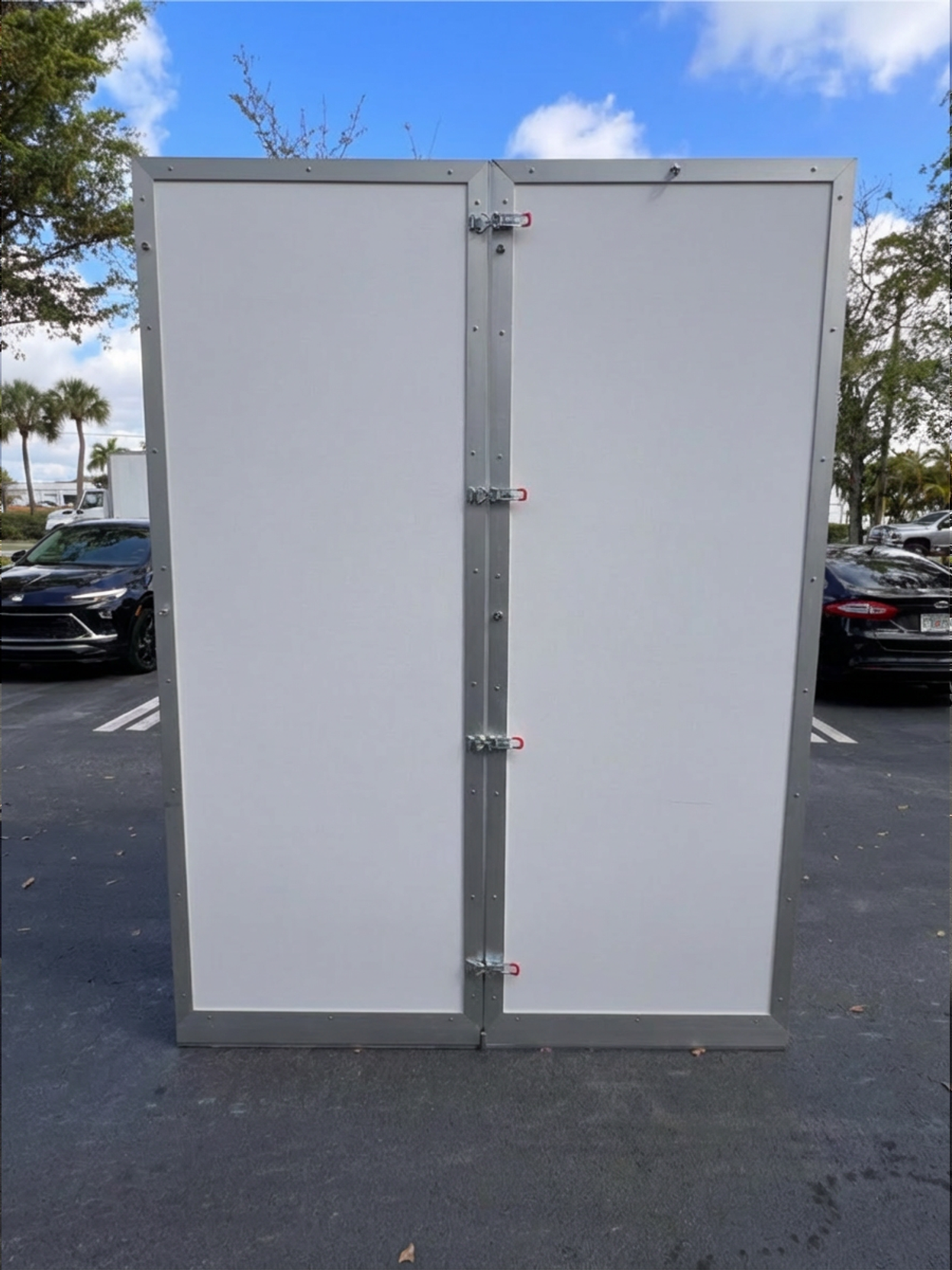

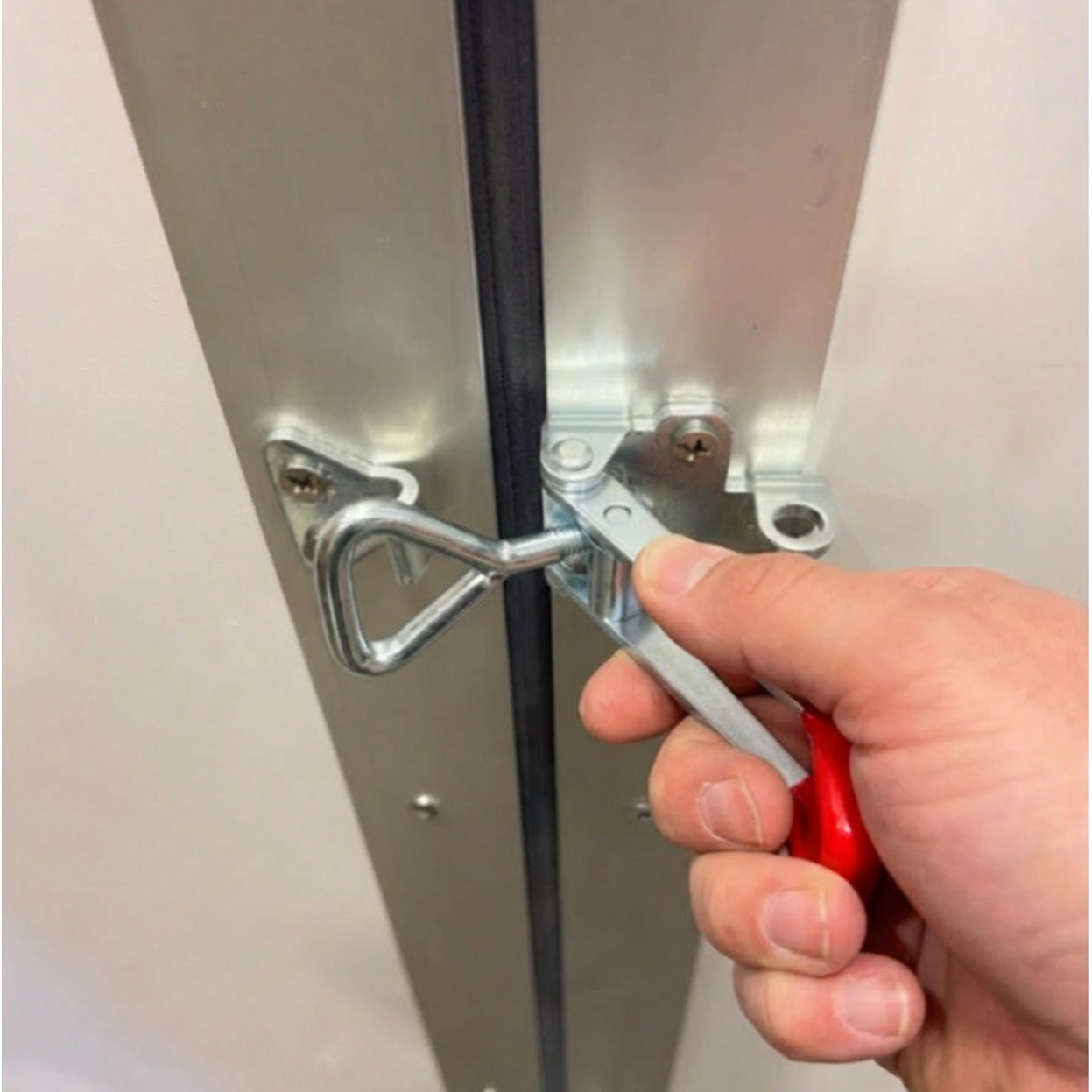

BlueFIN™ Flood Walls feature a rapid proprietary connection system that allows for quick system assembly, and the fast release of panels. An array of sections can be removed from within and reinstalled as needed, allowing for egress routes to be left open until the last moment, when a perimeter must be sealed against floodwaters.
Ground Anchoring System

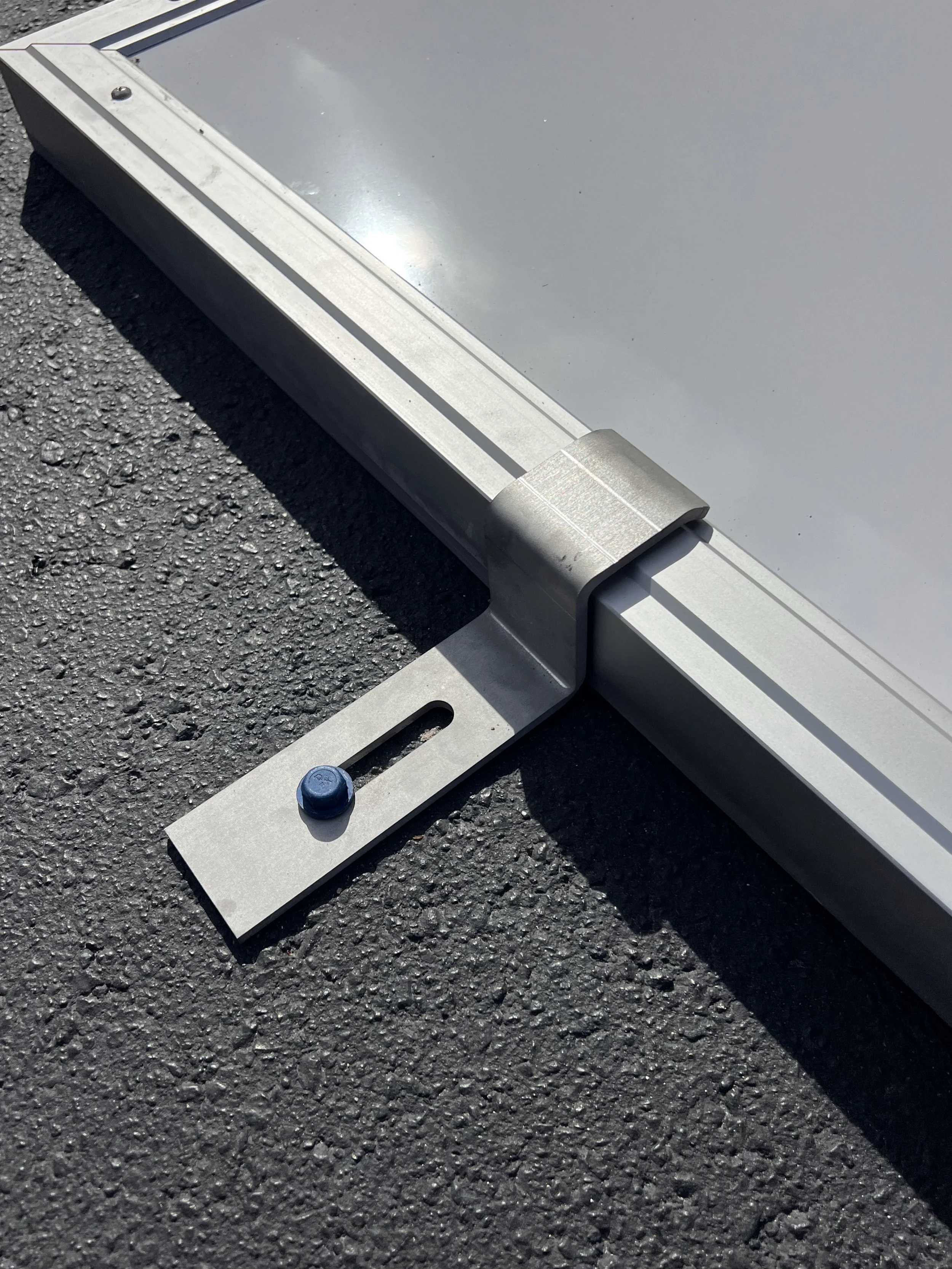

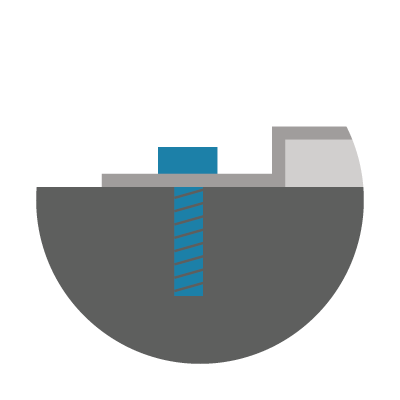

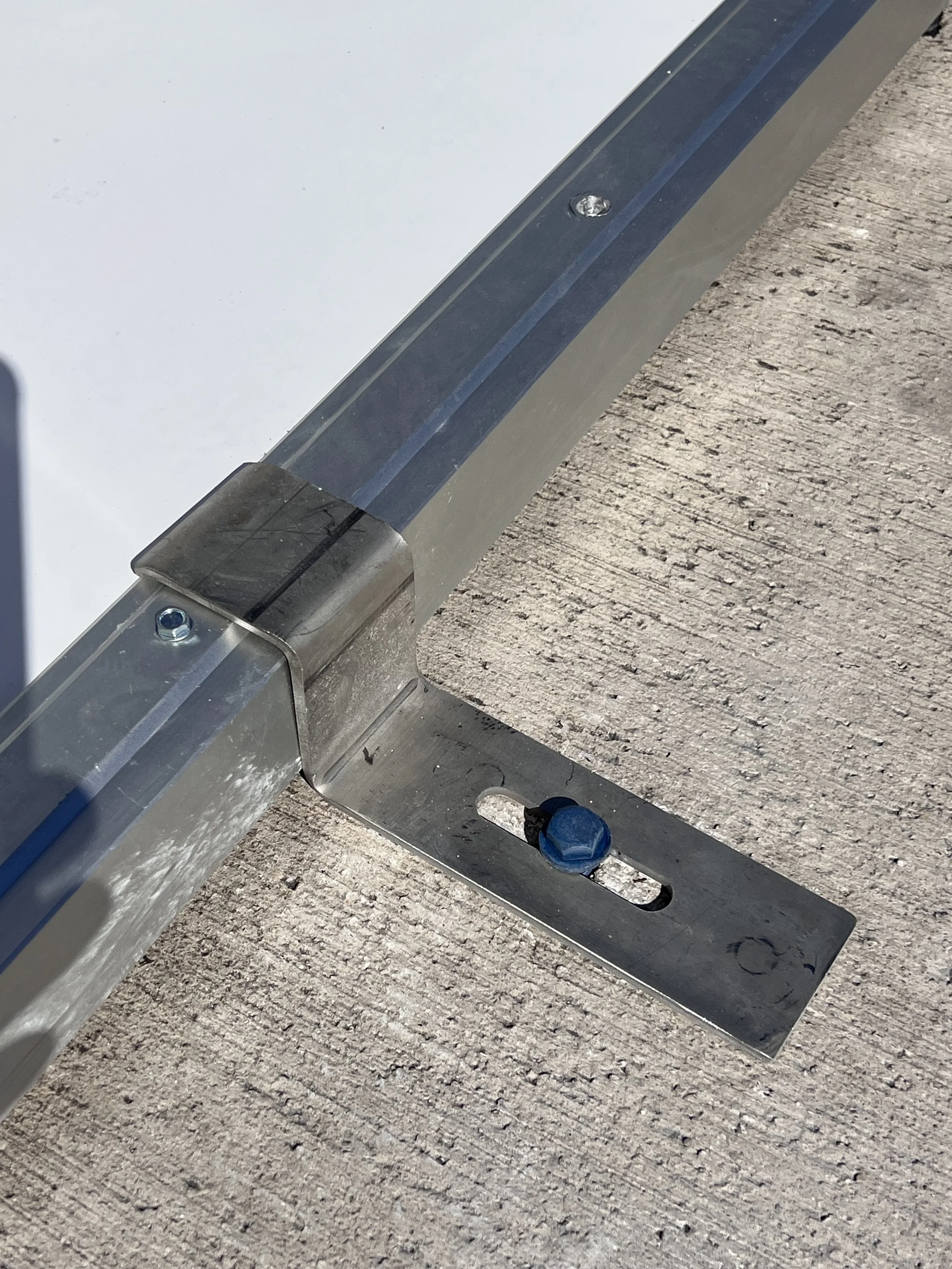

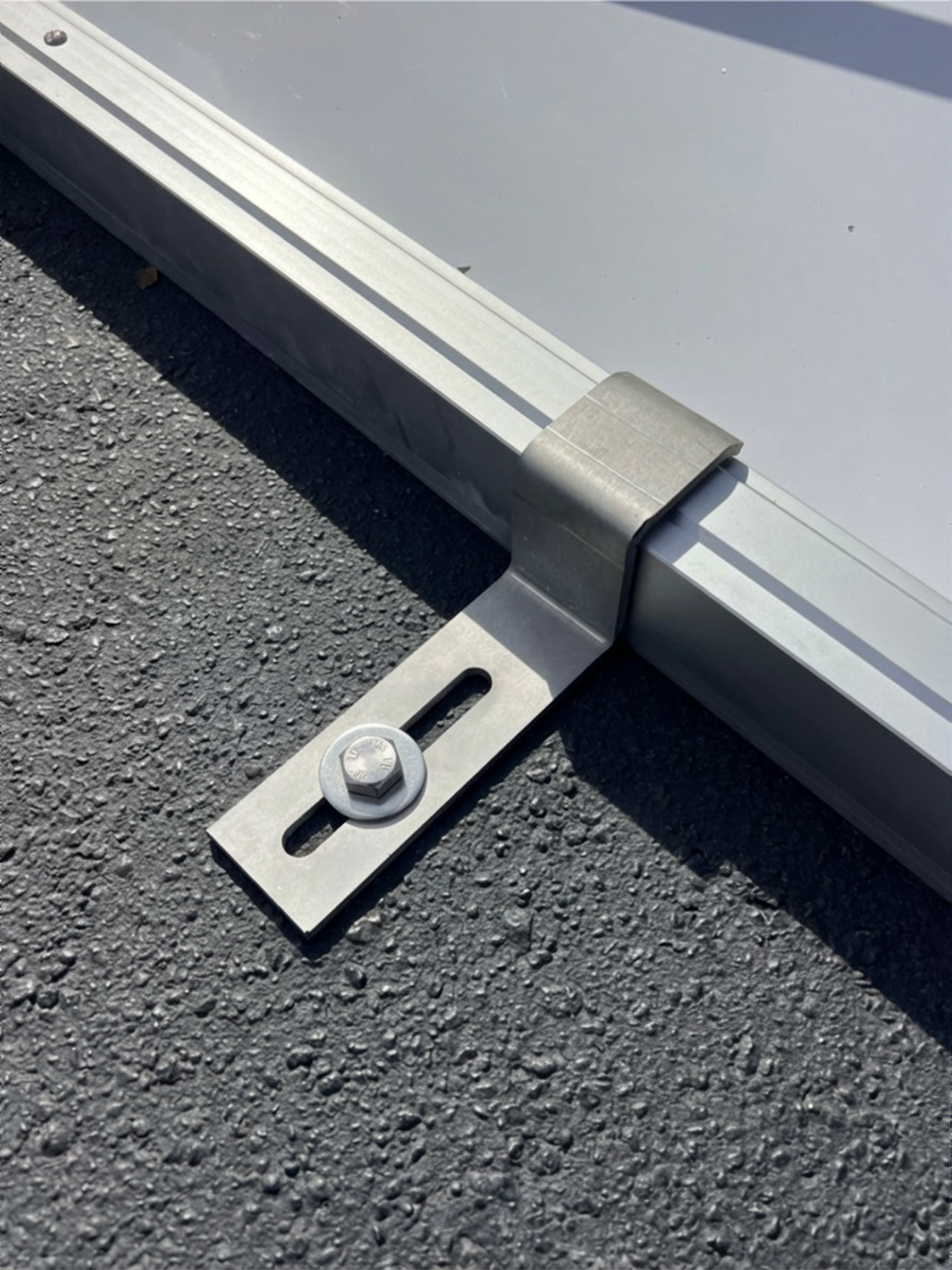

Ground anchor plates are used to provide additional stability for BlueFIN™, especially during hurricane conditions. Stainless steel plates are designed to latch over and hook onto the BlueFIN™ aluminum frame extrusions, locking panels into position. Plates are then bolted into the ground using varying anchor plates depending on the type of surface.

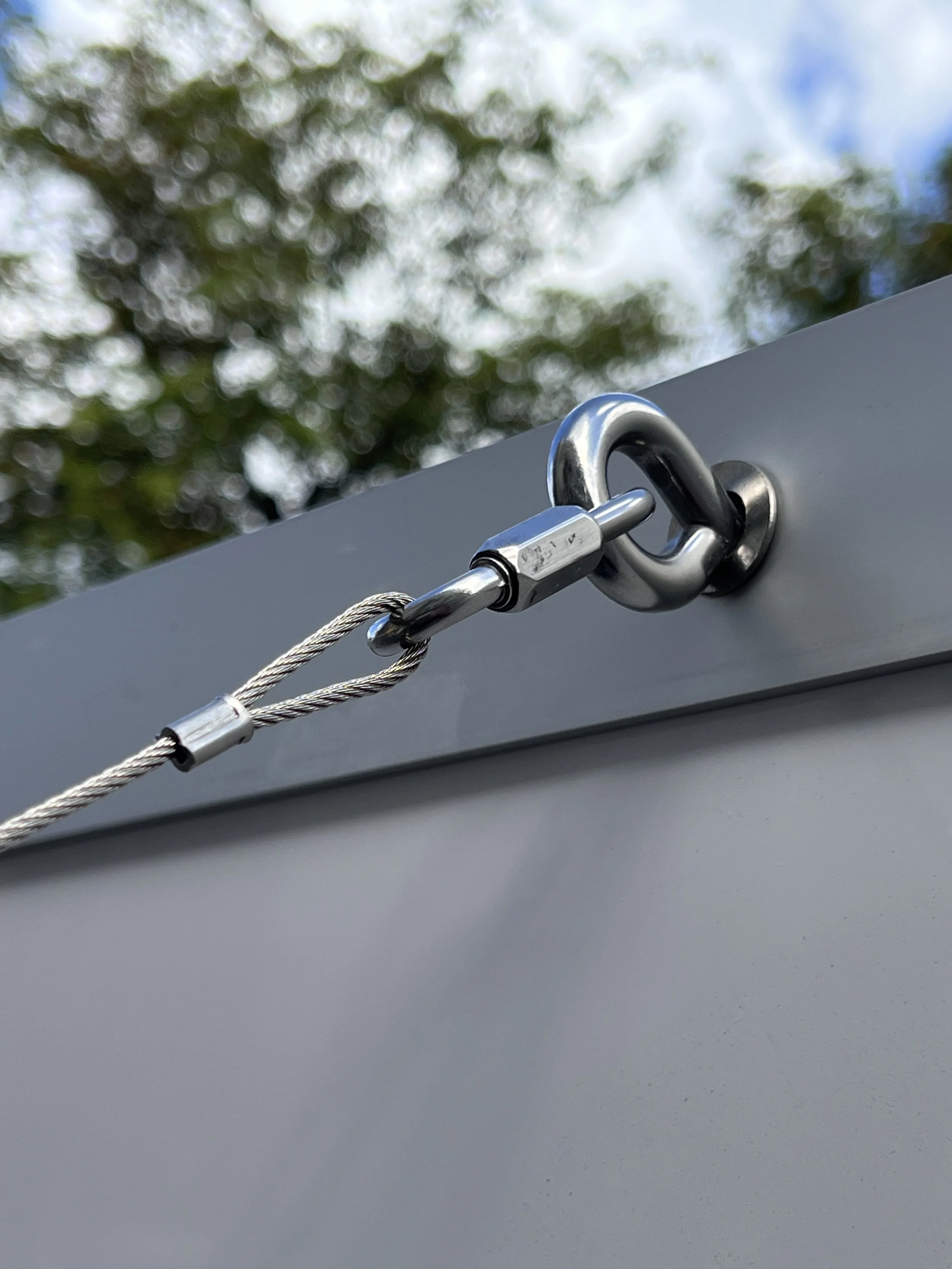

Wind Resistance Cable

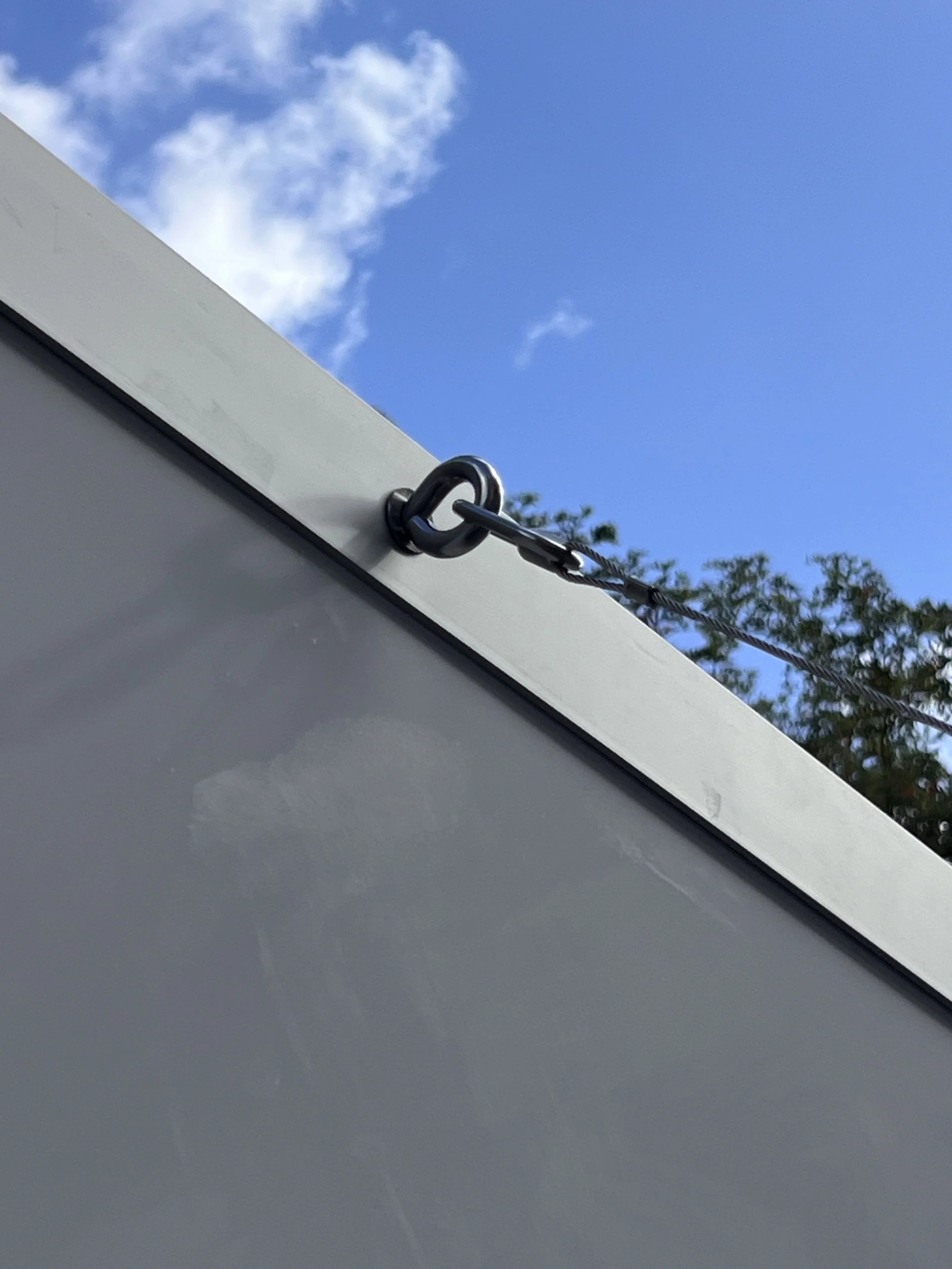

Optional anchor cables are used to provide additional wind and storm resistance against hurricane force winds. Aircraft grade cables span from an eyebolt located at the top of the upright panel to the ground on the dry-side of the panel. Depending on the ground surface, a variety of anchors may be used to attach the cables.
Specifications:
Flood Wall Sizes
Planel Widths: 3ft, 4ft, 6ft, 8ft
Panel Heights: 8ft, 6ft, 4ft, 3ft
Planel Depths: 8ft, 6ft, 4ft, 3ft
Complete Assembled Flood Wall Sizes and Weights:
8ft High x 3ft Wide x 8ft Deep - 156 lbs.
6ft High x 4ft Wide x 6ft Deep - 128 lbs.
4ft High x 6ft Wide x 4ft Deep - 128 lbs.
3ft High x 8ft Wide x 3ft Deep - 156 lbs.
Flood Wall Construction
Composite Panel Thickness: 2” (5.08cm).
Composite Panel Material: Durable fiberglass exterior shell adhered to a structural honeycomb core with 8mm polypropylene woven mesh cells.
Extruded Frame Material: 6063 T6 Aluminum.
Sealing Strip Material: Closed Cell Rubber EPDM.
Anchoring Bracket: 316L Marine Grade Stainless Steel.
Anchoring Cable: Stainless Steel Aircraft Grade Cable with 316L Stainless Hardware.
Standard Color: Light Grey. White and custom colors available with special order.
Simple Set Up, Break Down and Storage
Position and Bolt Panels
The bottom of the upright panel has a specialized overhanging extrusion, with a rubber gasket, that is designed to overlap the frame of the bottom panel.

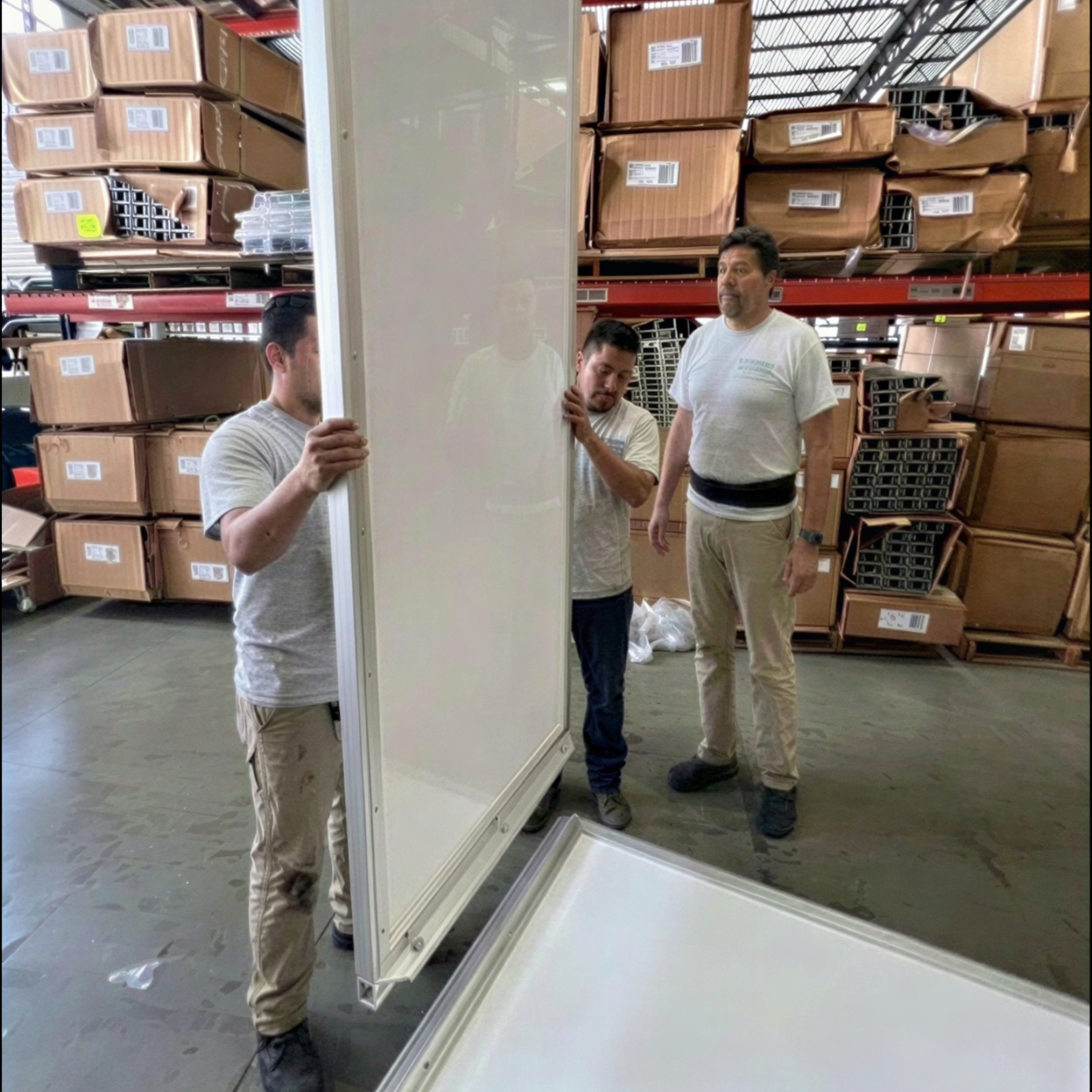

Lift and position the upright panel such that it rests alongside the bottom panel, with the overhanging lip positioned over the bottom panel extrusion.
Align the top panel with the bolt holes on the overlap bolt holes on the bottom panel frame.
Note: Before bolting into position, ensure that the rubber gasket located on the underside of the overlapping lip is securely fastened.

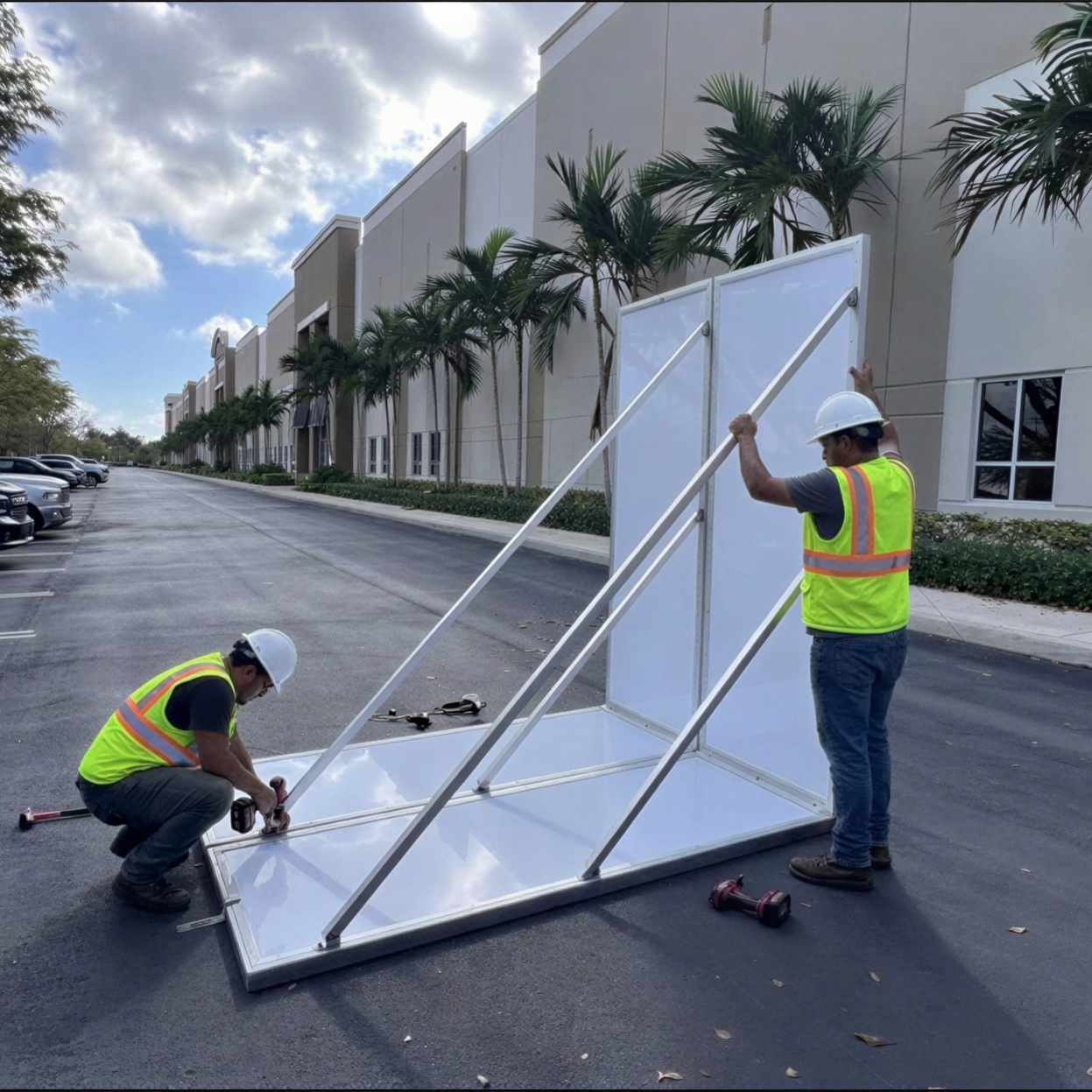

Install Diagonal Support Braces

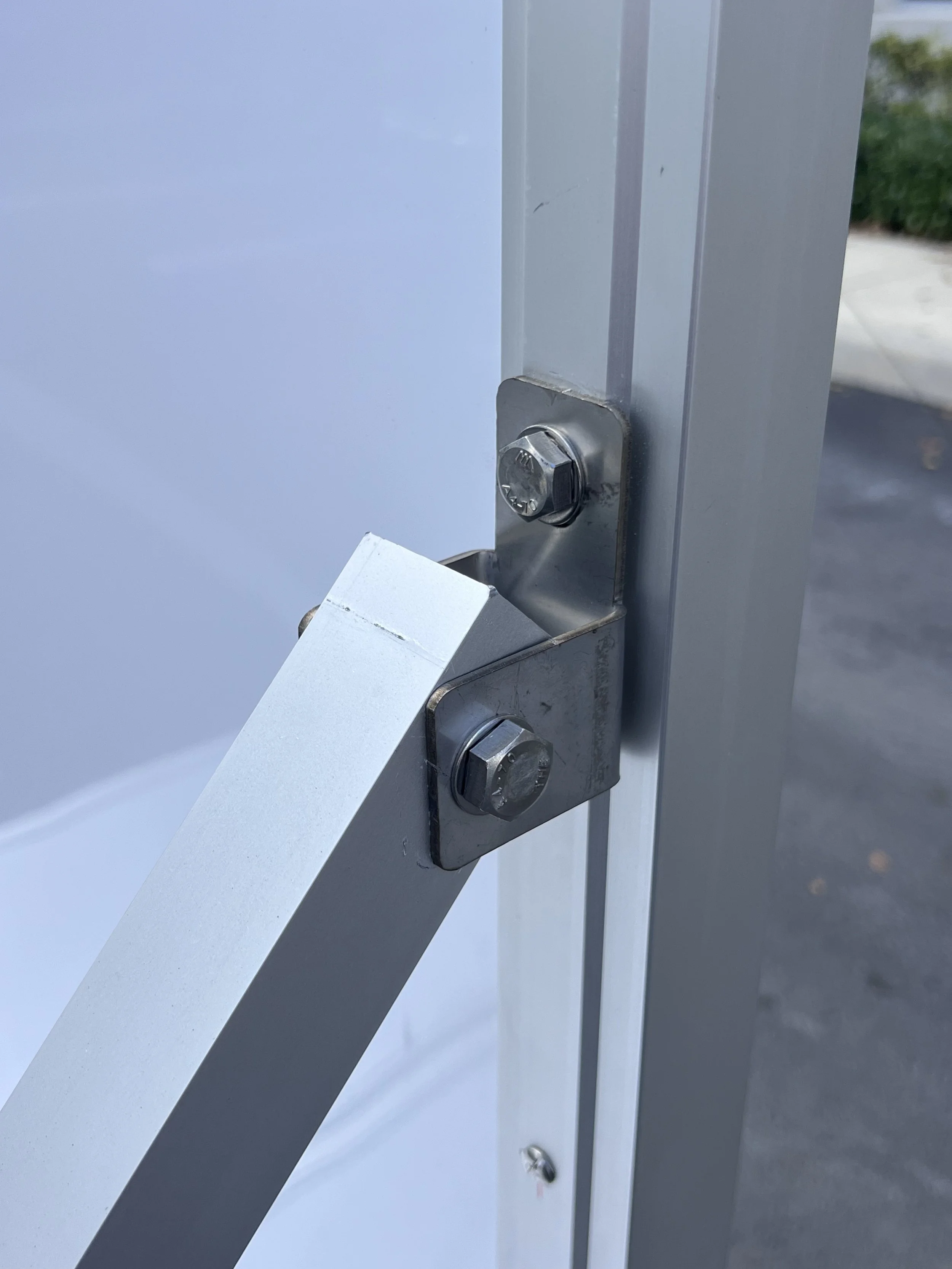

Place diagonal cross braces into position inside the lower panel bracket and lean towards the upright panel.
Utilize the included cotter pins to lock each support leg into position at both the bottom bracket and the top bracket.
Note: Panels 4ft or lower utilize one cross brace per panel, while panels 6ft or over utilize 2 cross braces per panel.
Assembled panels can be transported and positioned as a single unit, but care should be taken to support the bottom panel when moving sections.
Latch Panels Together
Position panels alongside each other, such that the rubber seal on one side of the panel abuts the aluminum frame on the adjacent panel.
Pull out the latch lever and extend the latch loop across and between panels, and over the receiver hook on the adjacent panel.
The connector loop tension can be adjusted by tightening or loosing the loops threading within the latch mechanism.
Lock each latch so that panels are bound together, causing the panels to seal between the connected flood panel section.
After Assembling and Connecting Flood Wall Panels, Use Optional Ground Anchors and Wind Cables to Further Stabilize the Flood Wall During Installation

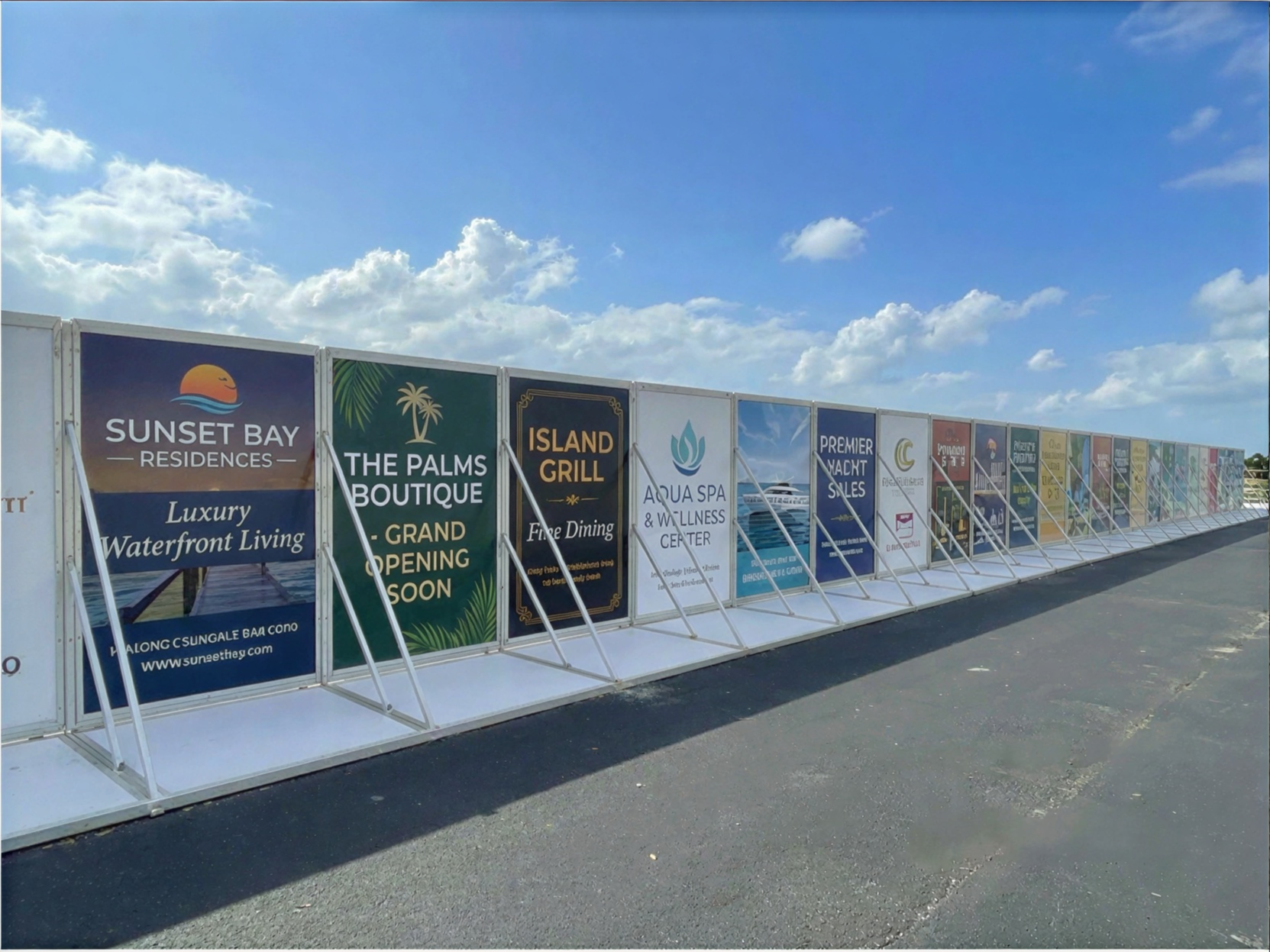

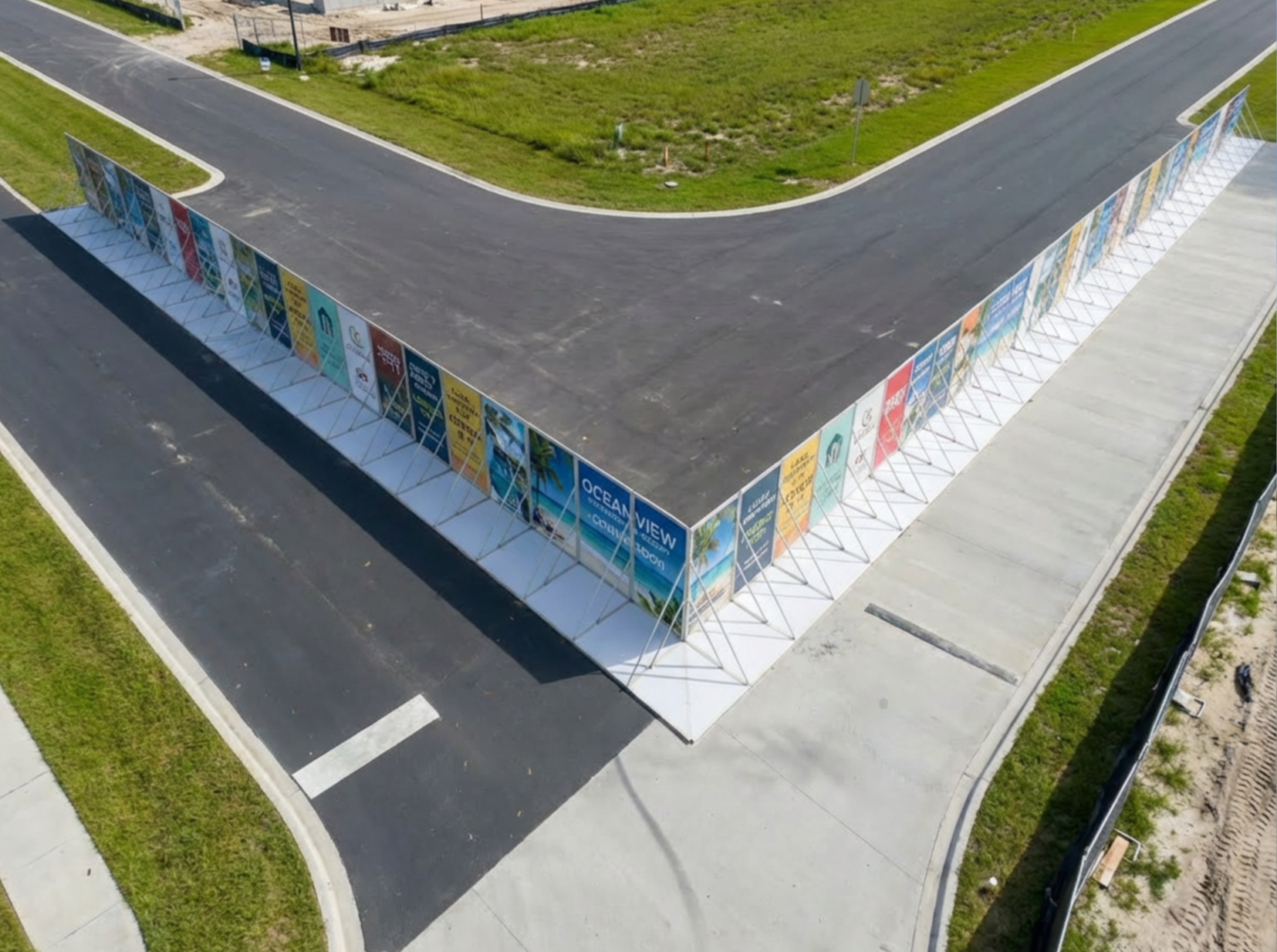

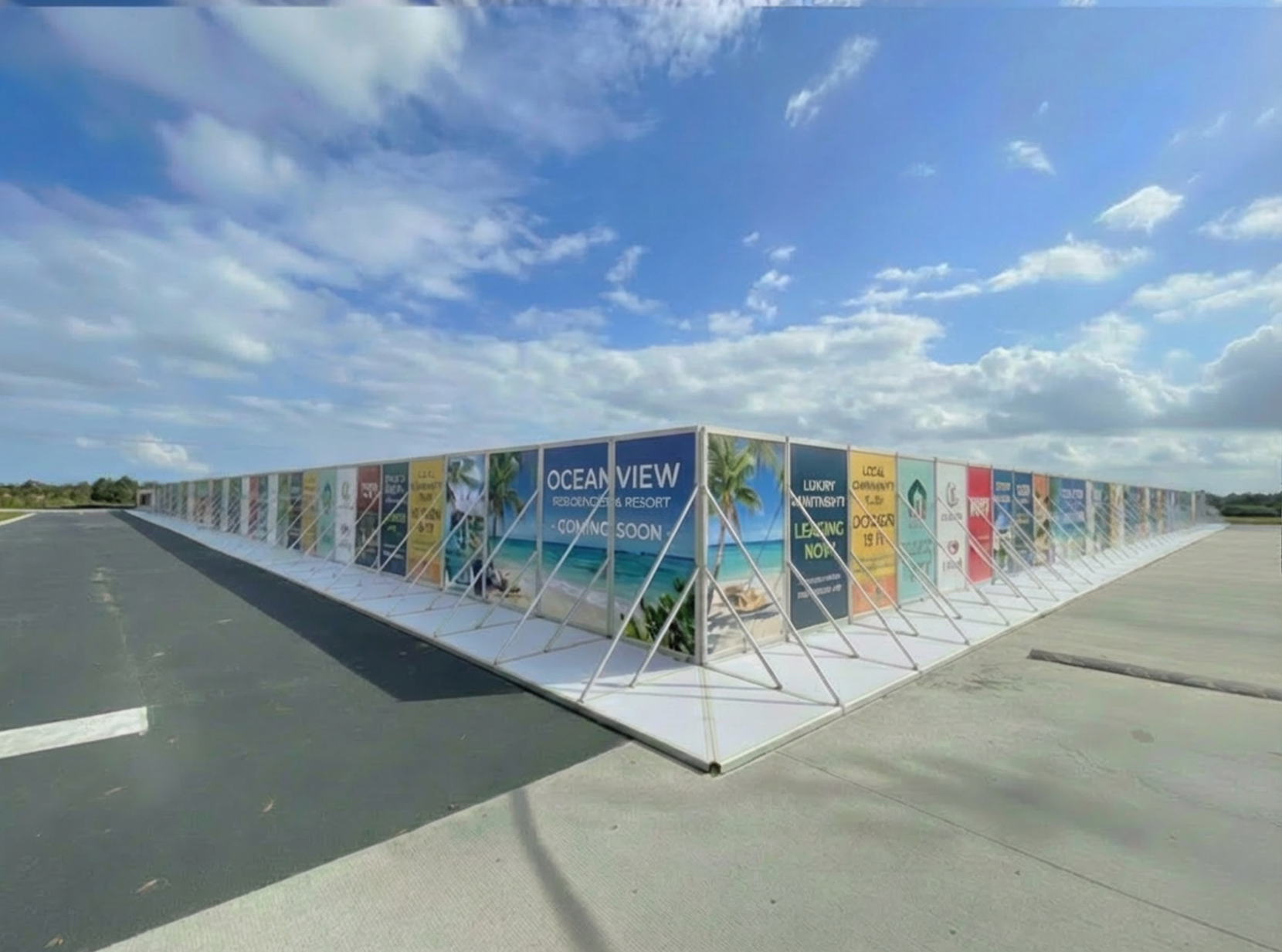

Custom Colors and Graphic Designs Available
The BlueFIN™ flood wall is customizable beyond standard light grey for enhanced aesthetics or branding, offering nearly unlimited options for color-matching, custom graphics, and specialty finishes to match any site location or brand.
Garrison Flood Control Mitigation Services
On-Site Visits
Garrison Flood Control offers expert site visits to assess your property’s vulnerabilities, take measurements and recommend an effective flood protection solutions tailored to your needs.
Installation Services
Garrison Flood Control provides professional installation services across Florida and in select areas of the United States, ensuring your flood wall systems are expertly installed and your teams are trained.
Frequently Asked Questions
-
-
BlueFIN™ flood walls connect to each other using a unique manual latching system, designed to pull, tension and seal panels together as they are connected. Latches can be disconnected and individual panels can be removed or left out as needed for egress or to leave a gap for traffic, until the flood wall needs to be fully sealed.
-
BlueFIN™ flood panels are designed to be easy to deploy. When connecting BlueFIN panels to create a flood wall the two sections of the panels, transported flat, need to be connected in an L-Shape configuration. This is achieved by tightening inserting bolts into the overhanging protrusion strip, located at the bottom of the upright panel and into the frame of the horizontal ground panel. A standard allen wrench is used to tighten these down.
Otherwise, there are no tools required to deploy or attach BlueFIN panels.
-
The BlueFIN™ flood barrier is manufactured using high quality extruded 6063 T-6 Aluminum frames and supports and composite honeycomb FRP (Fiberglass Reinforced) panels. Optional wind anchoring cables are aircraft grade stainless steel and all hardware is 316L marine grade stainless steel.
-
The bottom BlueFIN™ panel has specialized rubber EPDM seals, which create a strong seal with the surface below. There is also a seal running along the side of each BlueFIN panel, designed to seal between sections when connected. Finally, there is a rubber seal between panels at the intersection of the “L”.
Because the BlueFIN is ideally suited for asphalt and concrete applications, where the best seal can be achieved, some consideration should be given to less even ground surfaces. As the BlueFIN ground panels are only minimally flexible, and while there is some flexibility to the EPDM seal, the ground should be inspected, leveled and patched, where needed to achieve the optimal seal.
-
The standard BlueFIN™ modular flood wall panels can handle floods up to 8ft, with custom sizes going up to 9ft.
-
The installation time for BlueFIN™ depends on the height of panels deployed and the installation environment, but a good rule of thumb is that one 3ft wide x 8ft panel takes approximately 10 minutes for 2 people to deploy, meaning 100ft of protection should take two people about 5 hours. Additional personnel can be deployed to speed installation.
Note: Much of the time involved in installing panels is tied to transporting the panels to the location where they will be installed. For large projects, we always advise having a pickup truck, gator, or other vehicle to assist in transporting panels to the install location.
-
Yes. The BlueFIN is fully reusable and is designed to last 10+ years with proper storage and handling. The only items that may need to be periodically changed, depending on usage level, are the rubber seals.
-
Yes - we offer 90 degree and 45 degree turn sections that allow you to make a turn with BlueFIN. This is ideal when using BlueFIN to protect an entire perimeter or for customized installation configurations.
-
BlueFIN™ needs to be installed on a relatively flat surface, so that a good seal is created between the panel and the floor. As the water level rises, the downward pressure on the panels enhances the seal, minimizing leakage and enhancing protection.
-
You can hose down or pressure wash the Panels after use, making sure to clear away any stuck on debris. Be careful not to damage of the rubber seals if using a pressure washer. Standard household cleaners can be used to clean stubborn dirt. Stack sections after they are completely dry.
-
BlueFIN™ is proudly manufactured in the USA. All BlueFIN™ products currently ship from our manufacturing facility in Pompano Beach, Florida.
-
We offer standard BlueFIN™ panels in 3ft Wide x 8ft High, 4ft Wide x 6ft High, 6ft Wide x 4ft High, and 8ft Wide x 3ft High, and can customize panels in larger widths and up to 9ft High.
-
Yes. BlueFIN™ flood barriers can be produced in a custom color to match your style goals or property aesthetic. We can also adhere custom printed graphics to BlueFIN panels to meet branding or advertising goals.
-
Contact us and speak with a flood specialist today to determine the number and type of panels that are right for you. We recommend getting exact measurements of your area requiring protection. Pictures are also helpful to determine if BlueFIN™ is the right protect for your mitigation needs.
